RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 6 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 2 ROW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-0110001 M80-001 +4

M80-8880605

Active

Harwin Inc.

RECTANGULAR CONNECTOR, DATAMATE L-TEK M80 SERIES, 6 CONTACTS, RECEPTACLE, 2 MM, CRIMP, 2 ROW

Deep-Dive with AI

DocumentsM80-0110001 M80-001 +4

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-8880605

Cable Termination	Crimp
Color	Black
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.3 Ám
Contact Finish Thickness	11.8 Áin
Contact Type	Female Socket
Fastening Type	Locking Ramp
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Number of Rows	2
Pitch [x]	0.079 in
Pitch [x]	2 mm
Row Spacing	2 mm
Row Spacing	0.079 in
Wire Gauge [Max]	28 AWG
Wire Gauge [Min]	24 AWG
Wire Type	Discrete

M80-888 Series

Part	Pitch [x]	Pitch [x]	Number of Rows	Wire Type	Color	Contact Finish	Fastening Type	Wire Gauge [Min]	Wire Gauge [Max]	Connector Type	Row Spacing	Row Spacing	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Cable Termination	Mounting Type
Harwin Inc. M80-8880605	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	6	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8882005	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	20	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8881205	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	12	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8881805	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	18	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8881405	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	14	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8883405	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	34	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8882605	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	26	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8880405	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	4	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)
Harwin Inc. M80-8880805	0.079 in	2 mm	2	Discrete	Black	Gold	Locking Ramp	24 AWG	28 AWG	Receptacle	2 mm	0.079 in	8	0.3 Ám	11.8 Áin	Female Socket	Crimp	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.95
		10	$ 4.56
		25	$ 4.11
		50	$ 3.81
		100	$ 3.53
		250	$ 3.21
		500	$ 2.99
		1000	$ 2.79
		2500	$ 2.56
Newark	Each	1	$ 4.59
		10	$ 3.74
		25	$ 3.45
		50	$ 3.24
		100	$ 3.05
		250	$ 2.86
		500	$ 2.70
		1000	$ 2.57

Description

General part information

M80-888 Series

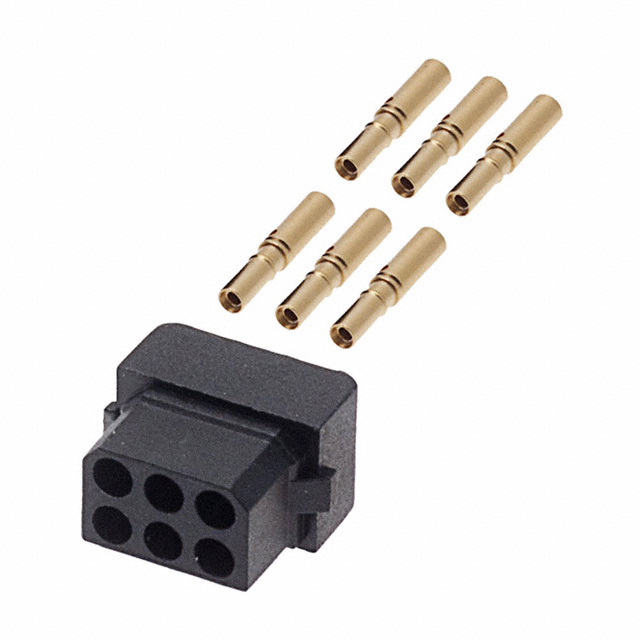

The M80-8880605 is a 6-way 2-row Datamate L-Tek Female DIL Cable Connector Kit with gold-plated brass contacts, black PBT housing, 2mm pitch spacing and crimp termination. Kit of housing and applicable number of contacts (spare contacts = M80-0130005). Small bore, suitable for 24 to 28AWG cable. 2.00mm pitch high-reliability Datamate connector system. For interconnecting board to board, cable to board and cable to cable. The gold-plated contact zone is hard acid gold of 98% purity. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature (L-Tek) or in a jackscrew (J-Tek) format, with or without board mounting.
