19140010503

Active

HARTING Technology Group

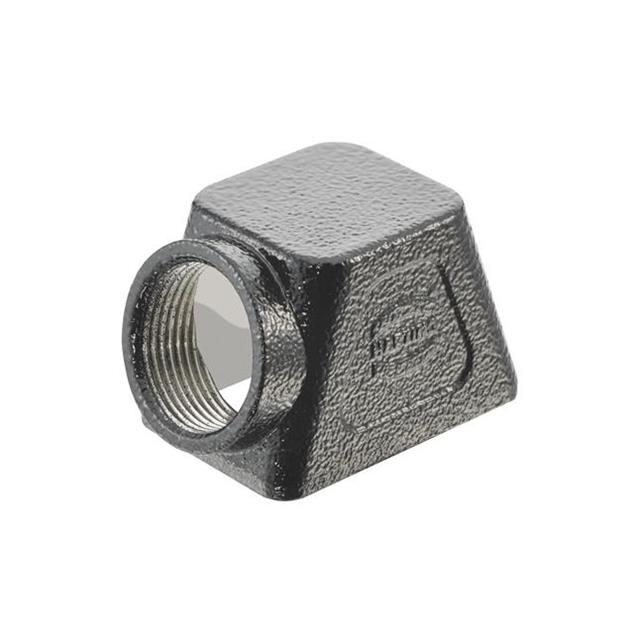

HAN-MODULAR COMPACT MARINE HOOD, SIDE ENTRY, M25 (BLACK)

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-MODULAR COMPACT MARINE HOOD, SIDE ENTRY, M25 (BLACK)

Technical Specifications

Parameters and characteristics for this part

Specification	19140010503

null

Part	Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Connector Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Finish	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19140010501	Side Entry	33.8 mm	1.339 in	34 mm	1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel
HARTING Technology Group 19140010401	Top Entry	33.8 mm	1.339 in	34 mm	1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel
HARTING Technology Group 19140010503
HARTING Technology Group 19140010402	Top Entry		1.831 "		1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel	33.8 mm	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector

Technical documentation and resources
