19140010402

Active

HARTING Technology Group

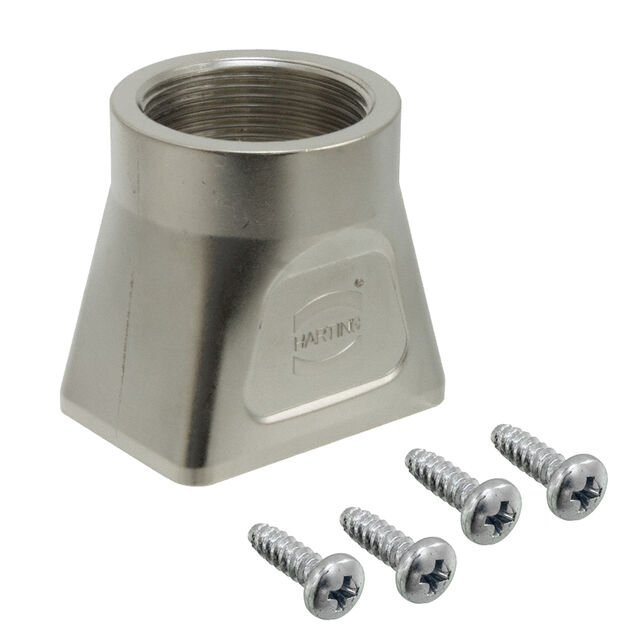

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M32, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER

Technical Specifications

Parameters and characteristics for this part

Specification	19140010402

Connector Type	Hood
Housing Finish	Nickel
Housing Material	Zinc, Die Cast
Ingress Protection	IP65 - Dust Tight, Water Resistant
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size / Dimension [x]	1.89 in
Size / Dimension [x]	48 mm
Size / Dimension [y]	1.331 "
Size / Dimension [y]	33.8 mm
Size / Dimension [z]	1.831 "
Size / Dimension [z]	46.5 mm
Style	Top Entry
Thread Size	M32

Part	Style	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Housing Material	Connector Type	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Housing Finish	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19140010501	Side Entry	33.8 mm	1.339 in	34 mm	1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel
HARTING Technology Group 19140010401	Top Entry	33.8 mm	1.339 in	34 mm	1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M25	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel
HARTING Technology Group 19140010503
HARTING Technology Group 19140010402	Top Entry		1.831 "		1.89 in	1.331 "	48 mm	Zinc Die Cast	Hood	M32	125 °C	-40 °C	IP65 - Dust Tight Water Resistant	Nickel	33.8 mm	46.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood Connector Top Entry M32 IP65 - Dust Tight, Water Resistant
