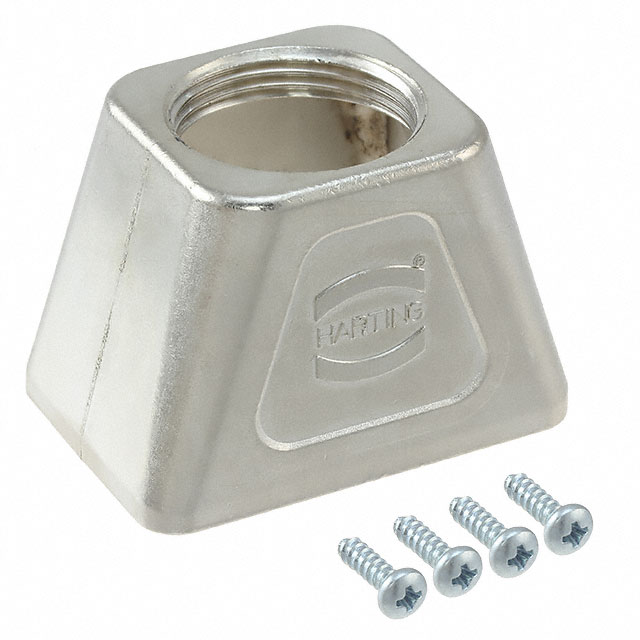

19140010401
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, M25 TOP ENTRY, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER
Deep-Dive with AI
Search across all available documentation for this part.
19140010401
ActiveHARTING Technology Group
HEAVY DUTY CONNECTOR, M25 TOP ENTRY, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19140010401 |
|---|---|
| Connector Type | Hood |
| Housing Finish | Nickel |
| Housing Material | Zinc, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 1.89 in |
| Size / Dimension [x] | 48 mm |
| Size / Dimension [y] | 33.8 mm |
| Size / Dimension [y] | 1.331 " |
| Size / Dimension [z] | 1.339 in |
| Size / Dimension [z] | 34 mm |
| Style | Top Entry |
| Thread Size | M25 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.89 | |
| 10 | $ 16.06 | |||
| 25 | $ 15.05 | |||
| 50 | $ 14.33 | |||
| 100 | $ 13.65 | |||
| 250 | $ 12.80 | |||
| 500 | $ 12.19 | |||
Description
General part information
19140010 Series
Hood Connector Top Entry M25 IP65 - Dust Tight, Water Resistant
