19200031750

Active

HARTING Technology Group

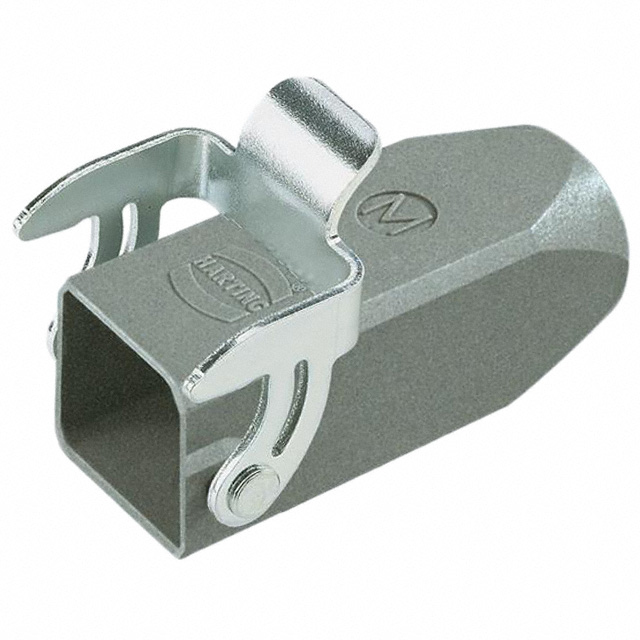

HAN A HOOD COUPLER 1 LEVER M20 ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

Documents19200031750 Prod Declaration Cert Datasheet

19200031750

Active

HARTING Technology Group

HAN A HOOD COUPLER 1 LEVER M20 ROHS COMPLIANT: YES

Deep-Dive with AI

Documents19200031750 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200031750

Connector Type	Hood/Housing - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	24.2 mm
Size / Dimension [x]	0.953 in
Size / Dimension [y]	24.2 mm
Size / Dimension [y]	0.953 in
Size / Dimension [z]	2.244 "
Size / Dimension [z]	57 mm
Thread Size	M20

19200031 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Features	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Color	Thread Size	Housing Material	Connector Type	Style	Size	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19200031755	1.142 in	57 mm	1.142 inches	29 mm	29 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031440	1.102 in	60 mm	1.063 in	28 mm	27 mm	2.362 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031165							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	PG11	Zinc Die Cast	Base - Panel Mount 90° Bulkhead	Side Entry
HARTING Technology Group 19200031422							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031447							IP44			Locking Clip (1) on Base Bottom	125 °C	-40 °C		Gray	M25	Zinc Die Cast	Hood	Top Entry	A3
HARTING Technology Group 19200031250	1.575 in		1.102 in		28 mm	1.071 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Base - Panel Mount 90°	Side Entry		40 mm	27.2 mm
HARTING Technology Group 19200031421							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031425							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031750	0.953 in	57 mm	0.953 in	24.2 mm	24.2 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood Top	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031645	1.102 in	61.6 mm	1.063 in	28 mm	27 mm	2.425 in	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood - 90°	Side Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 19.21
		10	$ 13.96
		25	$ 12.46
		50	$ 11.49
		100	$ 10.64
		250	$ 9.68
		500	$ 9.05
		1000	$ 8.50
Newark	Each	1	$ 14.39
		10	$ 11.72
		25	$ 10.94
		50	$ 10.16
		100	$ 9.56
		250	$ 9.55

Description

General part information

19200031 Series

Hood/Housing - Coupling Connector M20 3A IP44

Documents

Technical documentation and resources

19200031750 Prod Declaration Cert

Datasheet
