19200031425

Active

HARTING Technology Group

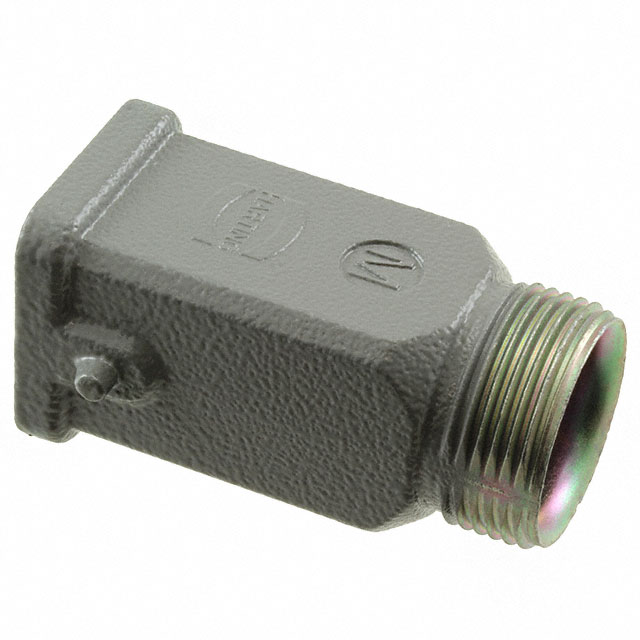

3A HOOD TOP ENTRY W/ SEALING, LOW CONSTRUCTION, W/ CABLE GLAND FOR 6 12MM CABLE

Deep-Dive with AI

Search across all available documentation for this part.

Documents19200031425 Prod Declaration Cert Datasheet

19200031425

Active

HARTING Technology Group

3A HOOD TOP ENTRY W/ SEALING, LOW CONSTRUCTION, W/ CABLE GLAND FOR 6 12MM CABLE

Deep-Dive with AI

Documents19200031425 Prod Declaration Cert Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200031425

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Style	Top Entry
Thread Size	M25

19200031 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Features	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Color	Thread Size	Housing Material	Connector Type	Style	Size	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19200031755	1.142 in	57 mm	1.142 inches	29 mm	29 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031440	1.102 in	60 mm	1.063 in	28 mm	27 mm	2.362 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031165							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	PG11	Zinc Die Cast	Base - Panel Mount 90° Bulkhead	Side Entry
HARTING Technology Group 19200031422							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031447							IP44			Locking Clip (1) on Base Bottom	125 °C	-40 °C		Gray	M25	Zinc Die Cast	Hood	Top Entry	A3
HARTING Technology Group 19200031250	1.575 in		1.102 in		28 mm	1.071 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Base - Panel Mount 90°	Side Entry		40 mm	27.2 mm
HARTING Technology Group 19200031421							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031425							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031750	0.953 in	57 mm	0.953 in	24.2 mm	24.2 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood Top	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031645	1.102 in	61.6 mm	1.063 in	28 mm	27 mm	2.425 in	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood - 90°	Side Entry

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 32.76
		10	$ 24.12
		25	$ 21.64
		50	$ 20.04
		100	$ 18.63
		250	$ 17.02
		500	$ 15.98
Newark	Each	10	$ 20.50
		25	$ 19.68
		50	$ 18.39
		100	$ 17.69
		250	$ 16.75

Description

General part information

19200031 Series

Hood Connector Top Entry M25 3A IP44

Documents

Technical documentation and resources

19200031425 Prod Declaration Cert

Datasheet
