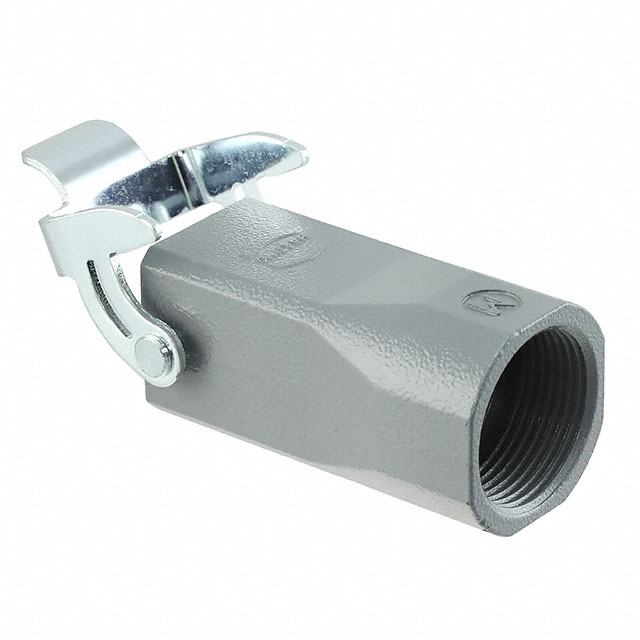

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER, 3A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 19200031755 Prod Declaration Cert +1

19200031755

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, M25, HOOD, TOP ENTRY, ZINC BODY, 1 LEVER, 3A

Deep-Dive with AI

DocumentsDatasheet 19200031755 Prod Declaration Cert +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	19200031755

Connector Type	Hood/Housing - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Zinc, Die Cast
Ingress Protection	IP44
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	3 A
Size / Dimension [x]	1.142 inches
Size / Dimension [x]	29 mm
Size / Dimension [y]	1.142 in
Size / Dimension [y]	29 mm
Size / Dimension [z]	57 mm
Size / Dimension [z]	2.244 "
Thread Size	M25

19200031 Series

Part	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Ingress Protection	Features	Housing Finish	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Size	Housing Color	Thread Size	Housing Material	Connector Type	Style	Size	Size / Dimension [y]	Size / Dimension [z]
HARTING Technology Group 19200031755	1.142 in	57 mm	1.142 inches	29 mm	29 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031440	1.102 in	60 mm	1.063 in	28 mm	27 mm	2.362 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031165							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	PG11	Zinc Die Cast	Base - Panel Mount 90° Bulkhead	Side Entry
HARTING Technology Group 19200031422							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031447							IP44			Locking Clip (1) on Base Bottom	125 °C	-40 °C		Gray	M25	Zinc Die Cast	Hood	Top Entry	A3
HARTING Technology Group 19200031250	1.575 in		1.102 in		28 mm	1.071 "	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Base - Panel Mount 90°	Side Entry		40 mm	27.2 mm
HARTING Technology Group 19200031421							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031425							IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood	Top Entry
HARTING Technology Group 19200031750	0.953 in	57 mm	0.953 in	24.2 mm	24.2 mm	2.244 "	IP44	Cable to Cable	Powder Coated	Locking Clip (1) on Hood Top	125 °C	-40 °C	3 A	Gray	M20	Zinc Die Cast	Hood/Housing - Coupling
HARTING Technology Group 19200031645	1.102 in	61.6 mm	1.063 in	28 mm	27 mm	2.425 in	IP44		Powder Coated	Locking Clip (1) on Base Bottom	125 °C	-40 °C	3 A	Gray	M25	Zinc Die Cast	Hood - 90°	Side Entry
