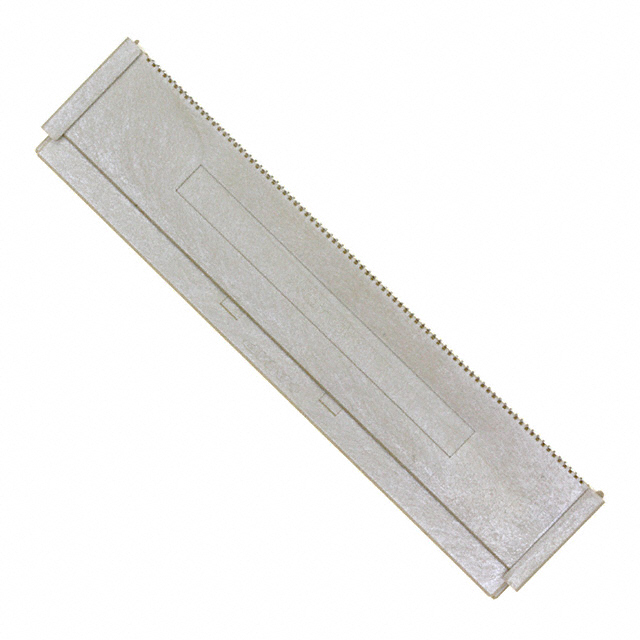

5-1735480-8
ActiveTE Connectivity Raychem Cable Protection
BOARD TO BOARD & MEZZANINE CONNECTORS RCPT 160P .8MMFH 17H AU
Deep-Dive with AI
Search across all available documentation for this part.
5-1735480-8
ActiveTE Connectivity Raychem Cable Protection
BOARD TO BOARD & MEZZANINE CONNECTORS RCPT 160P .8MMFH 17H AU
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-1735480-8 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 8 çin |
| Contact Finish Thickness | 0.203 çm |
| Features | Board Guide |
| Height Above Board | 15.75 mm |
| Height Above Board [z] | 0.62 in |
| Mated Stacking Heights [z] | 17 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 160 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
1 mm Free Height Series
Board to Board & Mezzanine Connectors 1FHP,64,50A/S,R,N,S09,11,14
