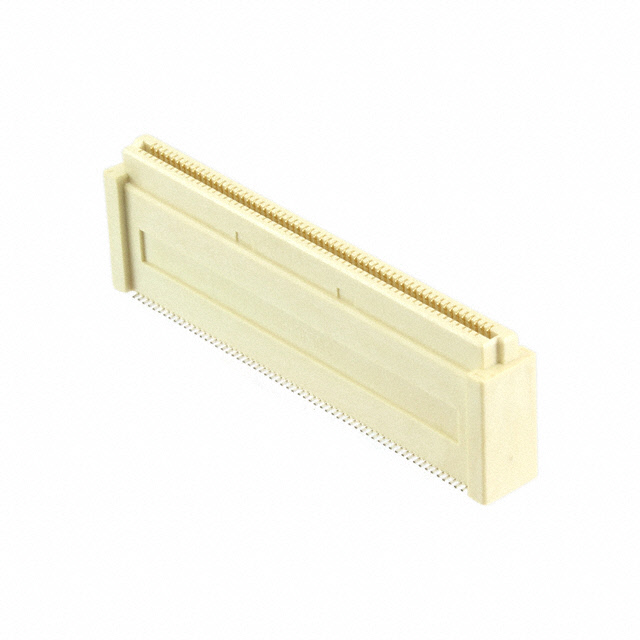

7-1735480-5
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT 120POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
7-1735480-5
ActiveTE Connectivity Raychem Cable Protection
CONN RCPT 120POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-1735480-5 |
|---|---|
| Connector Type | Receptacle, Outer Shroud Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Board Guide |
| Height Above Board | 15.75 mm |
| Height Above Board [z] | 0.62 in |
| Mated Stacking Heights [z] | 17 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 120 |
| Number of Rows | 2 |
| Pitch [x] | 0.8 mm |
| Pitch [x] | 0.031 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1440 | $ 10.14 | |
Description
General part information
1 mm Free Height Series
Board to Board & Mezzanine Connectors 1FHP,64,50A/S,R,N,S09,11,14
