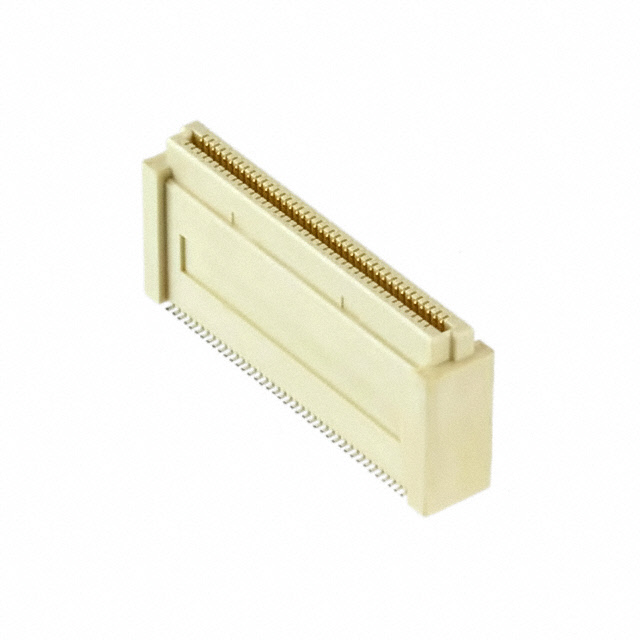

7-1735480-3 - 7-1735480-3

7-1735480-3

Active
TE Connectivity Raychem Cable Protection

0.8FH,R17H.5,080,30/SN,TU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetFree Height 0.8 mm Pitch Board-to-Board Connector (SMT)+2
7-1735480-3 - 7-1735480-3

7-1735480-3

Active
TE Connectivity Raychem Cable Protection

0.8FH,R17H.5,080,30/SN,TU

Deep-Dive with AI

DocumentsDatasheetFree Height 0.8 mm Pitch Board-to-Board Connector (SMT)+2

Technical Specifications

Parameters and characteristics for this part

Specification7-1735480-3
Connector TypeReceptacle, Outer Shroud Contacts
Contact FinishGold
Contact Finish Thickness0.76 Ám
Contact Finish Thickness30 Áin
FeaturesBoard Guide
Height Above Board15.75 mm
Height Above Board [z]0.62 in
Mated Stacking Heights [z]17 mm
Mounting TypeSurface Mount
Number of Positions80
Number of Rows2
Pitch [x]0.8 mm
Pitch [x]0.031 in

1 mm Free Height Series

Board to Board & Mezzanine Connectors 1FHP,64,50A/S,R,N,S09,11,14

PartConnector TypeMounting TypePitch [x]Pitch [x]Number of RowsFeaturesContact FinishHeight Above BoardHeight Above Board [z]Contact Finish ThicknessContact Finish ThicknessMated Stacking Heights [z]Number of Positions
TE Connectivity Raychem Cable Protection
5-1735480-4
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
100
TE Connectivity Raychem Cable Protection
5-1735480-1
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
40
TE Connectivity Raychem Cable Protection
7-1735480-5
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
30 Áin
0.76 Ám
17 mm
120
TE Connectivity Raychem Cable Protection
5-1735480-3
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
80
TE Connectivity Raychem Cable Protection
5-1735480-9
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
180
TE Connectivity Raychem Cable Protection
5-1735480-8
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
160
TE Connectivity Raychem Cable Protection
5-1735480-2
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
60
TE Connectivity Raychem Cable Protection
7-1735480-3
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
30 Áin
0.76 Ám
17 mm
80
TE Connectivity Raychem Cable Protection
5-1735480-6
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
8 çin
0.203 çm
17 mm
140
TE Connectivity Raychem Cable Protection
8-1735480-0
Receptacle
Outer Shroud Contacts
Surface Mount
0.8 mm
0.031 in
2
Board Guide
Gold
15.75 mm
0.62 in
30 Áin
0.76 Ám
17 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyTube 720$ 8.40

Description

General part information

1 mm Free Height Series

Board to Board & Mezzanine Connectors 1FHP,64,50A/S,R,N,S09,11,14
