4312NH

Active

ebm-papst Inc.

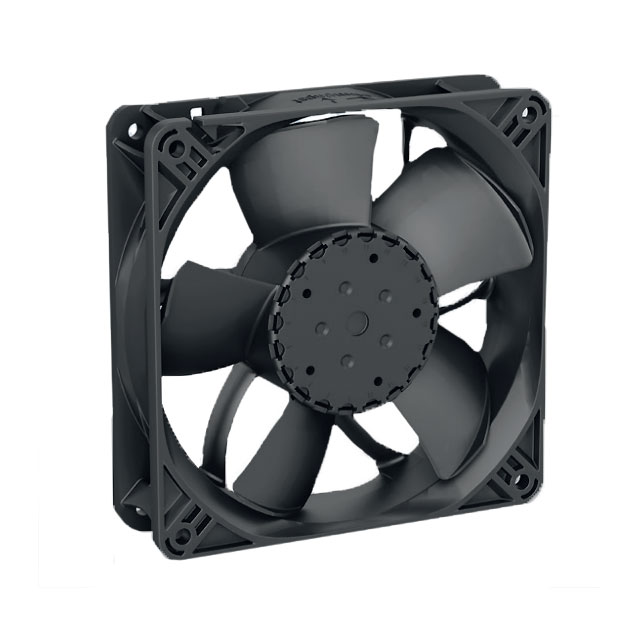

DC FAN AXIAL BALL BEARING 12V 6V TO 15V 129.49CFM 47DB 119 X 119 X 32MM HIGH SPEED

Search across all available documentation for this part.

Active

ebm-papst Inc.

DC FAN AXIAL BALL BEARING 12V 6V TO 15V 129.49CFM 47DB 119 X 119 X 32MM HIGH SPEED

Technical Specifications

Parameters and characteristics for this part

Specification	4312NH

Air Flow	129.3 CFM
Air Flow	3.62 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	62500 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	47 dB
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
Power (Watts)	6.5 W
RPM	3150 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	15 V
Voltage Range [Min]	6 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	32 mm

Part	Voltage - Rated	Lifetime @ Temp.	Fan Type	RPM	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Air Flow	Air Flow	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Noise	Material - Frame	Weight	Weight	Material - Blade	Air Flow
ebm-papst Inc. 4312NN	12 VDC	72500 Hrs	Tubeaxial	2700 RPM	15 V	6 VDC	32 mm	112 CFM	3.14 m³/min	CE CSA UL VDE	Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	4.3 W	43 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4312NHH	12 VDC	52500 Hrs	Tubeaxial	3600 RPM	14.4 VDC	6 VDC	32 mm	4.12 m³/min		CE CSA UL VDE	Ball	-20 C	-20 °C	70 °C	70 °C	2 Wire Leads	119 mm	119 mm	10.7 W	51 dB(A)	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	147 CFM
ebm-papst Inc. 4312NH3	12 VDC	45000 Hrs	Tubeaxial	4050 RPM	13.2 VDC	7 V	32 mm	4.68 m³/min			Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	12 W	55 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	167 CFM
ebm-papst Inc. 4312NH	12 VDC	62500 Hrs	Tubeaxial	3150 RPM	15 V	6 VDC	32 mm	3.62 m³/min		CE CSA UL VDE	Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	6.5 W	47 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	129.3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 30.06

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 129.3 CFM (3.62m³/min) 2 Wire Leads
