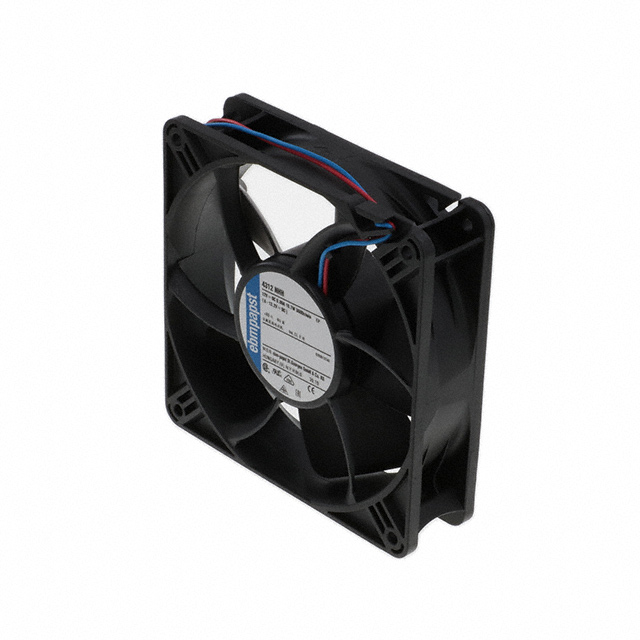

4312NHH

Active

ebm-papst Inc.

FAN AXIAL 119X32MM 12VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 119X32MM 12VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	4312NHH

Air Flow	147 CFM
Air Flow	4.12 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Lifetime @ Temp.	52500 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	51 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	10.7 W
RPM	3600 RPM
Size / Dimension [x]	119 mm
Size / Dimension [y]	119 mm
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	14.4 VDC
Voltage Range [Min]	6 VDC
Weight	0.553 lb
Weight	250.84 g
Width [y]	32 mm

Part	Voltage - Rated	Lifetime @ Temp.	Fan Type	RPM	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Air Flow	Air Flow	Approval Agency	Bearing Type	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Termination	Size / Dimension [y]	Size / Dimension [x]	Power (Watts)	Noise	Material - Frame	Weight	Weight	Material - Blade	Air Flow
ebm-papst Inc. 4312NN	12 VDC	72500 Hrs	Tubeaxial	2700 RPM	15 V	6 VDC	32 mm	112 CFM	3.14 m³/min	CE CSA UL VDE	Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	4.3 W	43 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)
ebm-papst Inc. 4312NHH	12 VDC	52500 Hrs	Tubeaxial	3600 RPM	14.4 VDC	6 VDC	32 mm	4.12 m³/min		CE CSA UL VDE	Ball	-20 C	-20 °C	70 °C	70 °C	2 Wire Leads	119 mm	119 mm	10.7 W	51 dB(A)	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	147 CFM
ebm-papst Inc. 4312NH3	12 VDC	45000 Hrs	Tubeaxial	4050 RPM	13.2 VDC	7 V	32 mm	4.68 m³/min			Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	12 W	55 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	167 CFM
ebm-papst Inc. 4312NH	12 VDC	62500 Hrs	Tubeaxial	3150 RPM	15 V	6 VDC	32 mm	3.62 m³/min		CE CSA UL VDE	Ball	-20 C	-20 °C	75 ░C	75 °C	2 Wire Leads	119 mm	119 mm	6.5 W	47 dB	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	0.553 lb	250.84 g	Fiberglass Reinforced Nylon Polyamide (PA)	129.3 CFM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 12VDC Square - 119mm L x 119mm H Ball 147.0 CFM (4.12m³/min) 2 Wire Leads
