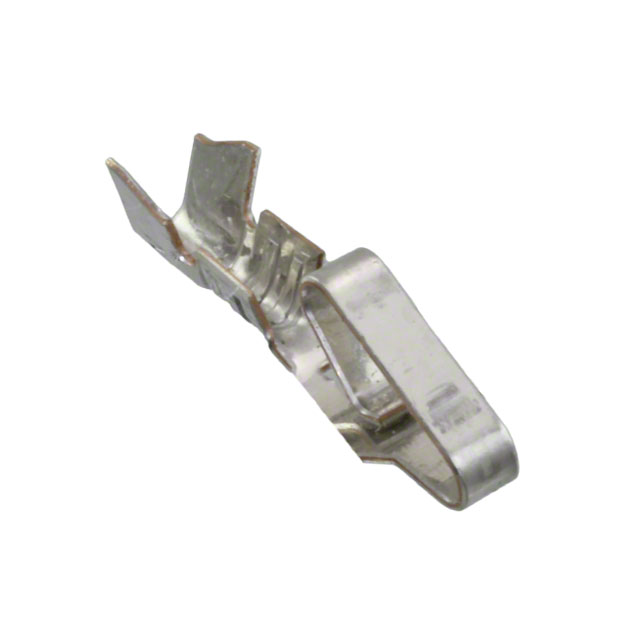

0008520071
ActiveMolex
CONN 18-24AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
0008520071
ActiveMolex
CONN 18-24AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0008520071 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 2.54 µm |
| Contact Finish Thickness | 100 µin |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 24 AWG |
| Wire Gauge [Min] | 17.5 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.06 | |||
| 100 | $ 0.04 | |||
| 1000 | $ 0.04 | |||
| 2500 | $ 0.03 | |||
| Tape & Reel (TR) | 7000 | $ 0.03 | ||
| 14000 | $ 0.03 | |||
| 21000 | $ 0.03 | |||
| 35000 | $ 0.02 | |||
| 49000 | $ 0.02 | |||
| 70000 | $ 0.02 | |||
| 175000 | $ 0.02 | |||
| 350000 | $ 0.02 | |||
Description
General part information
000852 Series
Non-Gendered Contact Tin 18-24 AWG Crimp
Documents
Technical documentation and resources
No documents available
