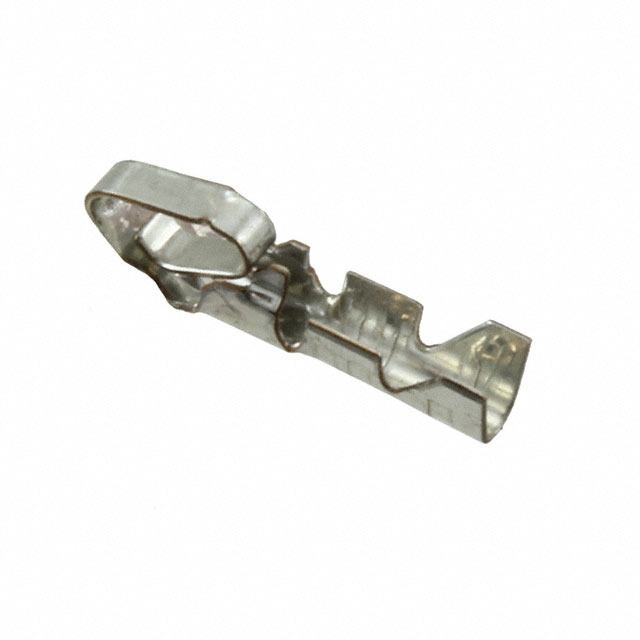

0008520105
ObsoleteMolex
CONN 22-30AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0008520105
ObsoleteMolex
CONN 22-30AWG CRIMP TIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0008520105 |
|---|---|
| Contact Finish | Tin |
| Contact Finish Thickness | 1.02 Ám |
| Contact Finish Thickness | 40 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Non-Gendered |
| Wire Gauge [Max] | 30 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
000852 Series
Non-Gendered Contact Tin 22-30 AWG Crimp
