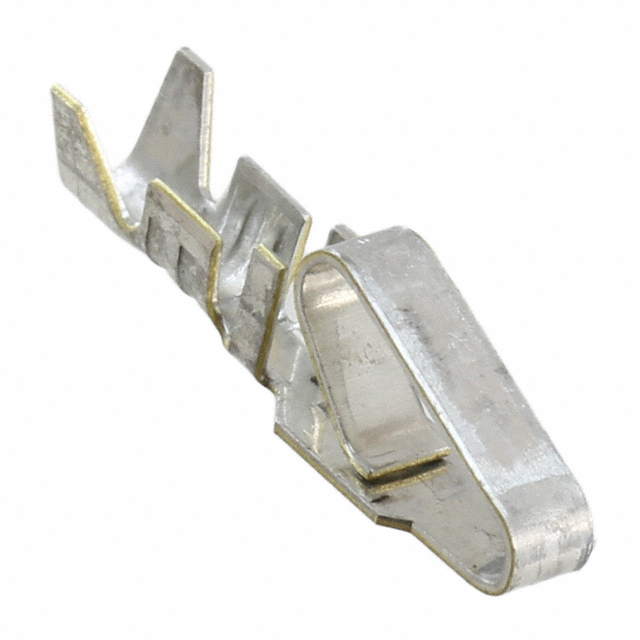

0008520132

Active

Molex

CONN 18-22AWG CRIMP TIN

Search across all available documentation for this part.

Active

Molex

CONN 18-22AWG CRIMP TIN

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pin or Socket	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge [Max]	Wire Gauge [Min]	Contact Termination
Molex 0008520132	Tin	Non-Gendered	2.54 µm	100 µin	22 AWG	17.5 AWG	Crimp
Molex 0008520105	Tin	Non-Gendered	1.02 Ám	40 Áin	30 AWG	22 AWG	Crimp
Molex 0008520071	Tin	Non-Gendered	2.54 µm	100 µin	24 AWG	17.5 AWG	Crimp
Molex 0008520131	Tin	Non-Gendered	2.54 µm	100 µin	22 AWG	17.5 AWG	Crimp

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Gendered Contact Tin 18-22 AWG Crimp

Technical documentation and resources

No documents available
