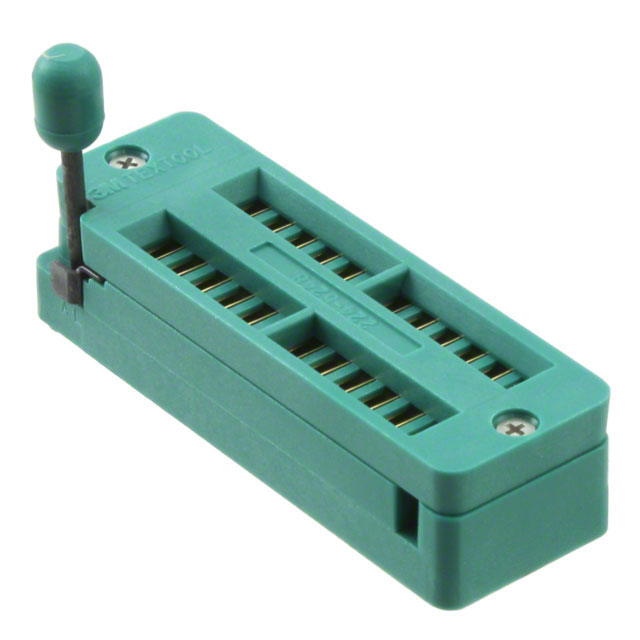

224-5248-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 24 CONTACTS, DIP SOCKET, 2.54 MM, 224 SERIES, 7.62 MM, BERYLLIUM COPPER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

224-5248-00-0602J

Active

3M (TC)

IC & COMPONENT SOCKET, 24 CONTACTS, DIP SOCKET, 2.54 MM, 224 SERIES, 7.62 MM, BERYLLIUM COPPER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	224-5248-00-0602J

Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	30 µin
Contact Finish Thickness - Post	0.76 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Beryllium Copper
Contact Resistance	15 mOhm
Current Rating (Amps)	1 A
Features	Closed Frame
Housing Material	Polysulfone (PSU), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Connector
Number of Positions or Pins (Grid)	24
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Press-Fit
Termination Post Length	0.11 in
Termination Post Length	2.78 mm
Type	7.62 mm
Type	0.3 in
Type	DIP, ZIF (ZIP)

224 Series

Part	Contact Material - Post	Mounting Type	Termination Post Length	Termination Post Length	Type	Number of Positions or Pins (Grid)	Termination	Contact Material - Mating	Contact Finish - Mating	Contact Finish - Post	Housing Material	Contact Resistance	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Pitch - Post	Pitch - Post	Operating Temperature [Min]	Operating Temperature [Max]	Features	Convert To (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Termination Post Length [x]	Termination Post Length [x]	Convert From (Adapter End)	Convert From (Adapter End)	Convert From (Adapter End)	Number of Pins	Convert From (Adapter End)
3M (TC) 224-5205-01	Beryllium Copper	Through Hole	0.118 in	3 mm	QFN	24	Solder	Beryllium Copper	Gold	Gold	Polyethersulfone (PES)	25 mOhm	0.02 in	0.5 mm
3M (TC) 224-5248-00-0602J	Beryllium Copper	Connector	0.11 in	2.78 mm	DIP ZIF (ZIP)	24	Press-Fit	Beryllium Copper	Gold	Gold	Polysulfone (PSU) Glass Filled	15 mOhm	0.1 in	2.54 mm	30 µin	0.76 µm	7.62 mm	0.3 in	1 A	30 Áin	0.76 Ám	UL94 V-0	2.54 mm	0.1 in	-55 °C	125 °C	Closed Frame
3M (TC) 224-1275-19-0602J	Beryllium Copper	Through Hole					Wire Wrap	Beryllium Copper	Gold	Gold	Polysulfone (PSU) Glass Filled		0.1 in	2.54 mm	30 µin	0.76 µm			1 A	30 Áin	0.76 Ám	UL94 V-0	2.54 mm	0.1 in	-55 °C	125 °C	Closed Frame	0.6 in	DIP	15.24 mm	0.62 in	15.75 mm	15.24 mm	DIP	0.6 in	24
3M (TC) 224-5248-19-0602J	Beryllium Copper	Through Hole					Solder	Beryllium Copper	Gold	Gold	Polysulfone (PSU) Glass Filled		0.1 in	2.54 mm	30 µin	0.76 µm			1 A	30 Áin	0.76 Ám	UL94 V-0	2.54 mm	0.1 in	-55 °C	125 °C		0.3 in	DIP	7.62 mm				DIP	7.62 mm	24	0.3 in
3M (TC) 224-1275-29-0602J	Beryllium Copper	Through Hole	0.13 in	3.3 mm			Solder	Beryllium Copper	Gold	Gold	Polysulfone (PSU) Glass Filled		0.1 in	2.54 mm	30 µin	0.76 µm			1 A	30 Áin	0.76 Ám	UL94 V-0	2.54 mm	0.1 in	-55 °C	125 °C	Closed Frame	0.6 in	DIP	15.24 mm			15.24 mm	DIP	0.6 in	24

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 33.42
		10	$ 29.27
		30	$ 28.00
		50	$ 27.10
		100	$ 26.19
		250	$ 24.75

Description

General part information

224 Series

24 (2 x 12) Pos DIP, ZIF (ZIP), 0.3" (7.62mm) Row Spacing Socket Gold Connector
