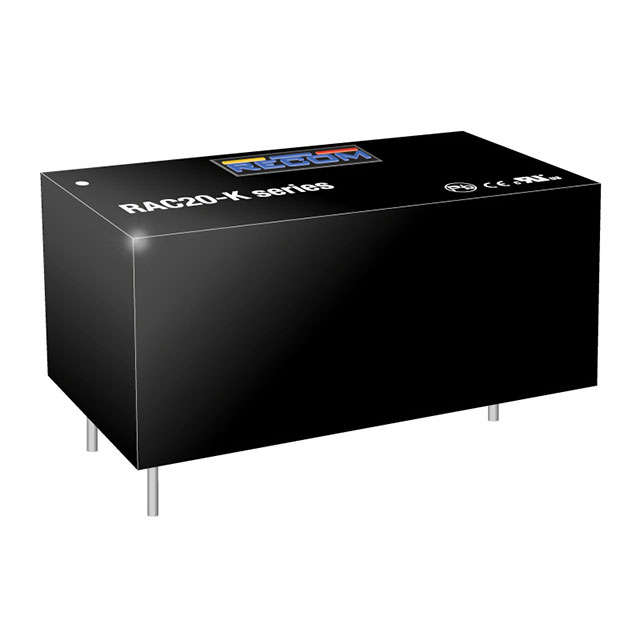

RAC20-12DK
ActiveRECOM Power
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 2 OUTPUT, 20 W, 12 V, 1.67 A, -12 V
Deep-Dive with AI
Search across all available documentation for this part.
RAC20-12DK
ActiveRECOM Power
AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 2 OUTPUT, 20 W, 12 V, 1.67 A, -12 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RAC20-12DK |
|---|---|
| Applications | Household Appliances, ITE (Commercial) |
| Approval Agency | CB, cURus, CE |
| Current - Output (Max) | 833 mA |
| Current - Output (Max) | 833 mA |
| Efficiency | 84 % |
| Features | Universal Input, IP20 |
| Line Regulation | 0.5 % |
| Load Regulation | 2 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 5-DIP Module |
| Power (Watts) | 20 W |
| Size / Dimension [x] | 2.07 " |
| Size / Dimension [x] | 52.5 mm |
| Size / Dimension [y] | 27.4 mm |
| Size / Dimension [y] | 1.08 in |
| Size / Dimension [z] | 23 mm |
| Size / Dimension [z] | 0.91 in |
| Type | Enclosed |
| Voltage - Input [Max] | 370 VDC, 264 VAC |
| Voltage - Input [Min] | 85 VAC, 120 VDC |
| Voltage - Output 1 | 12 V |
RAC20-K/W Series
AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 24Vout
| Part | Features | Current - Output (Max) [Max] | Efficiency | Power (Watts) | Package / Case | Package / Case | Applications | Load Regulation | Voltage - Input [Min] | Voltage - Input [Max] | Line Regulation | Type | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Number of Outputs | Voltage - Output 1 | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Weight | Weight | Standard Number | Voltage - Isolation | Minimum Load Required | Current - Output (Max) | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
RECOM Power | IP20 Universal Input | 840 mA | 85 % | 20 W | 4 Lead | 5-DIP Module | Household Appliances ITE (Commercial) | 2 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 0.5 % | Enclosed | Through Hole | 85 °C | -40 °C | CB CE cURus | 1 | 24 V | 2.07 " | 27.4 mm | 23 mm | 52.5 mm | 0.91 in | 1.08 in | ||||||||||
RECOM Power | SCP | 1.66 A | 20 W | 4-DIP Module | ITE (Commercial) | 1 % | 90 VAC | 264 VAC | 0.5 % | Enclosed | Through Hole | CE UL | 1 | 12 V | 2.06 in | 52.3 mm | 0.94 in | 1.07 in | 27.2 mm | 23.8 mm | 58.97 g | 0.13 lbs | ||||||||||||
RECOM Power | Universal Input | 4 A | 84 % | 20 W | Household Appliances ITE (Commercial) | 2 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 0.5 % | Enclosed | Through Hole | 80 ¯C | -40 °C | CE cURus | 1 | 5 V | 2.07 " | 27.4 mm | 23 mm | 52.5 mm | 0.91 in | 1.08 in | 62368-1 | |||||||||||
RECOM Power | Universal Input | Household Appliances ITE (Commercial) | 85 VAC 120 VDC | 264 VAC 370 VDC | Enclosed | Chassis Mount | 80 ¯C | -40 °C | CE cURus | 1 | 24 V | 2.07 " | 27.4 mm | 23 mm | 52.5 mm | 0.91 in | 1.08 in | 4000 V | ||||||||||||||||
RECOM Power | Universal Input | 833 mA | 83 % | 20 W | 4-DIP Module | ITE (Commercial) | 1 % | 90 VAC | 264 VAC | 0.5 % | Enclosed | Through Hole | CE cURus | 1 | 24 V | 2.07 " | 52.5 mm | 0.93 in | 1.08 in | 27.4 mm | 23.5 mm | 62.14 g | 0.137 lb | |||||||||||
RECOM Power | IP20 Universal Input | 84 % | 20 W | 5-DIP Module | Household Appliances ITE (Commercial) | 2 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 0.5 % | Enclosed | Through Hole | 85 °C | -40 °C | CB CE cURus | 2 | 12 V | 2.07 " | 27.4 mm | 23 mm | 52.5 mm | 0.91 in | 1.08 in | 833 mA | 833 mA | ||||||||||
RECOM Power | Universal Input | 4 A | 79 % | 20 W | 5 Leads 8-DIP Module | ITE (Commercial) | 1 % | 90 VAC | 264 VAC | 0.5 % | Enclosed | Through Hole | 70 °C | -25 °C | CE cULus | 1 | 5 V | 2.76 in | 48 mm | 22.3 mm | 70 mm | 0.88 in | 1.89 in | 110.22 g | 0.243 lb | 60950-1 | ||||||||
RECOM Power | IP20 Universal Input | 84 % | 20 W | 5-DIP Module | Household Appliances ITE (Commercial) | 2 % | 85 VAC 120 VDC | 264 VAC 370 VDC | 0.5 % | Enclosed | Through Hole | 85 °C | -40 °C | CB CE cURus | 2 | 15 V | 2.07 " | 27.4 mm | 23 mm | 52.5 mm | 0.91 in | 1.08 in | 670 mA | 670 mA |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RAC20-K/W Series
AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 24Vout
