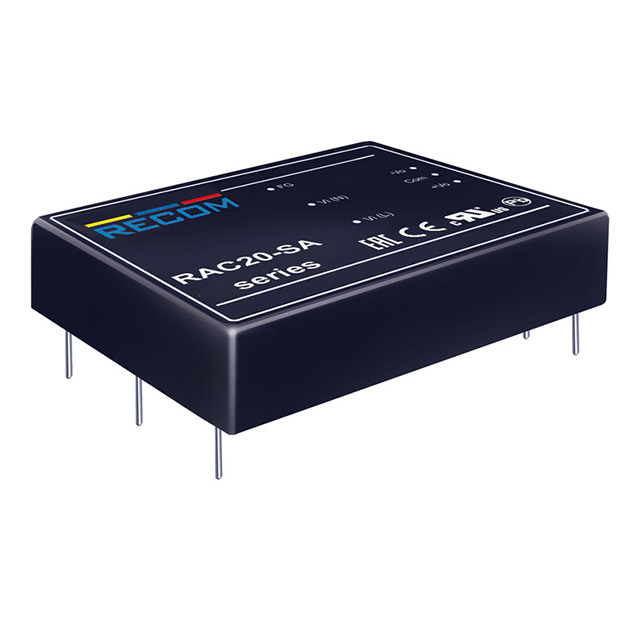

RAC20-05SA

RECOM Power

AC/DC POWER SUPPLY SINGLE-OUT 5V 4A 20W 5-PIN PDIP BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

RAC20-05SA

RECOM Power

AC/DC POWER SUPPLY SINGLE-OUT 5V 4A 20W 5-PIN PDIP BOX

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC20-05SA

Applications	ITE (Commercial)
Approval Agency	cULus, CE
Current - Output (Max) [Max]	4 A
Efficiency	79 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Package / Case	5 Leads, 8-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2.76 in
Size / Dimension [x]	70 mm
Size / Dimension [y]	48 mm
Size / Dimension [y]	1.89 in
Size / Dimension [z]	22.3 mm
Size / Dimension [z]	0.88 in
Standard Number	60950-1
Type	Enclosed
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	5 V
Weight	0.243 lb
Weight	110.22 g

RAC20-K/W Series

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 24Vout

Part	Features	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Package / Case	Package / Case	Applications	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Line Regulation	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Number of Outputs	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Weight	Weight	Standard Number	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power RAC20-24SK	IP20 Universal Input	840 mA	85 %	20 W	4 Lead	5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	1	24 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in
RECOM Power RAC20-12SB	SCP	1.66 A		20 W		4-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole			CE UL	1	12 V	2.06 in			52.3 mm	0.94 in	1.07 in	27.2 mm	23.8 mm	58.97 g	0.13 lbs
RECOM Power RAC20-05SK/W	Universal Input	4 A	84 %	20 W			Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	80 ¯C	-40 °C	CE cURus	1	5 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in					62368-1
RECOM Power RAC20-24SK/W	Universal Input						Household Appliances ITE (Commercial)		85 VAC 120 VDC	264 VAC 370 VDC		Enclosed	Chassis Mount	80 ¯C	-40 °C	CE cURus	1	24 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in						4000 V
RECOM Power RAC20-24SN	Universal Input	833 mA	83 %	20 W		4-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole			CE cURus	1	24 V	2.07 "			52.5 mm	0.93 in	1.08 in	27.4 mm	23.5 mm	62.14 g	0.137 lb
RECOM Power RAC20-12DK	IP20 Universal Input		84 %	20 W		5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	2	12 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in							833 mA	833 mA
RECOM Power RAC20-05SA	Universal Input	4 A	79 %	20 W		5 Leads 8-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole	70 °C	-25 °C	CE cULus	1	5 V	2.76 in	48 mm	22.3 mm	70 mm	0.88 in	1.89 in			110.22 g	0.243 lb	60950-1
RECOM Power RAC20-15DK	IP20 Universal Input		84 %	20 W		5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	2	15 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in								670 mA	670 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 96.90
Digikey	Box	3	$ 77.37
Sager	N/A	1	$ 77.37
		5	$ 74.87
		10	$ 71.43
		25	$ 69.29
		50	$ 68.27
		100	$ 66.33
		250	$ 61.91

Description

General part information

RAC20-K/W Series

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 24Vout

Documents

Technical documentation and resources

Datasheet

Document
