RAC20-15DK

Active

RECOM Power

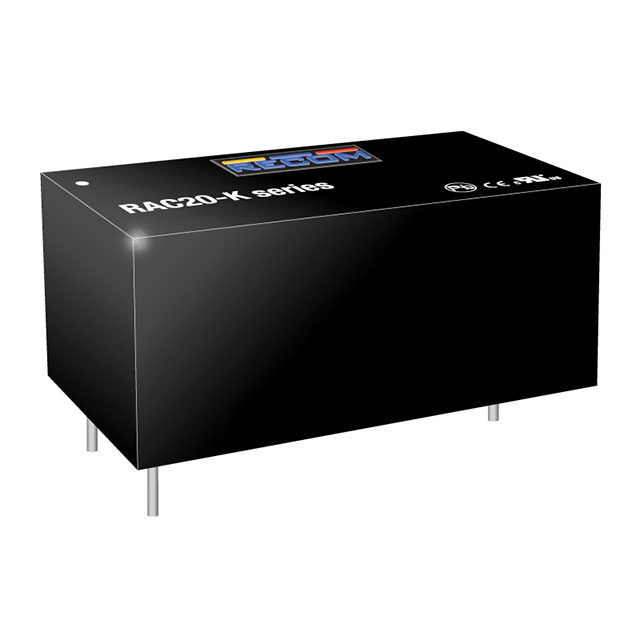

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 2 OUTPUT, 20 W, 15 V, 1.33 A, -15 V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet +1

RAC20-15DK

Active

RECOM Power

AC/DC PCB MOUNT POWER SUPPLY (PSU), ITE & HOUSEHOLD, 2 OUTPUT, 20 W, 15 V, 1.33 A, -15 V

Deep-Dive with AI

DocumentsDatasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RAC20-15DK

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output (Max)	670 mA
Current - Output (Max)	670 mA
Efficiency	84 %
Features	Universal Input, IP20
Line Regulation	0.5 %
Load Regulation	2 %
Mounting Type	Through Hole
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	5-DIP Module
Power (Watts)	20 W
Size / Dimension [x]	2.07 "
Size / Dimension [x]	52.5 mm
Size / Dimension [y]	27.4 mm
Size / Dimension [y]	1.08 in
Size / Dimension [z]	23 mm
Size / Dimension [z]	0.91 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Output 1	15 V

RAC20-K/W Series

AC/DC Power Modules 20W AC/DC 3kV REG 90-264Vin 24Vout

Part	Features	Current - Output (Max) [Max]	Efficiency	Power (Watts)	Package / Case	Package / Case	Applications	Load Regulation	Voltage - Input [Min]	Voltage - Input [Max]	Line Regulation	Type	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Number of Outputs	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Weight	Weight	Standard Number	Voltage - Isolation	Current - Output (Max)	Current - Output (Max)	Current - Output (Max)
RECOM Power RAC20-24SK	IP20 Universal Input	840 mA	85 %	20 W	4 Lead	5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	1	24 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in
RECOM Power RAC20-12SB	SCP	1.66 A		20 W		4-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole			CE UL	1	12 V	2.06 in			52.3 mm	0.94 in	1.07 in	27.2 mm	23.8 mm	58.97 g	0.13 lbs
RECOM Power RAC20-05SK/W	Universal Input	4 A	84 %	20 W			Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	80 ¯C	-40 °C	CE cURus	1	5 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in					62368-1
RECOM Power RAC20-24SK/W	Universal Input						Household Appliances ITE (Commercial)		85 VAC 120 VDC	264 VAC 370 VDC		Enclosed	Chassis Mount	80 ¯C	-40 °C	CE cURus	1	24 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in						4000 V
RECOM Power RAC20-24SN	Universal Input	833 mA	83 %	20 W		4-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole			CE cURus	1	24 V	2.07 "			52.5 mm	0.93 in	1.08 in	27.4 mm	23.5 mm	62.14 g	0.137 lb
RECOM Power RAC20-12DK	IP20 Universal Input		84 %	20 W		5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	2	12 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in							833 mA	833 mA
RECOM Power RAC20-05SA	Universal Input	4 A	79 %	20 W		5 Leads 8-DIP Module	ITE (Commercial)	1 %	90 VAC	264 VAC	0.5 %	Enclosed	Through Hole	70 °C	-25 °C	CE cULus	1	5 V	2.76 in	48 mm	22.3 mm	70 mm	0.88 in	1.89 in			110.22 g	0.243 lb	60950-1
RECOM Power RAC20-15DK	IP20 Universal Input		84 %	20 W		5-DIP Module	Household Appliances ITE (Commercial)	2 %	85 VAC 120 VDC	264 VAC 370 VDC	0.5 %	Enclosed	Through Hole	85 °C	-40 °C	CB CE cURus	2	15 V	2.07 "	27.4 mm	23 mm	52.5 mm	0.91 in	1.08 in								670 mA	670 mA
