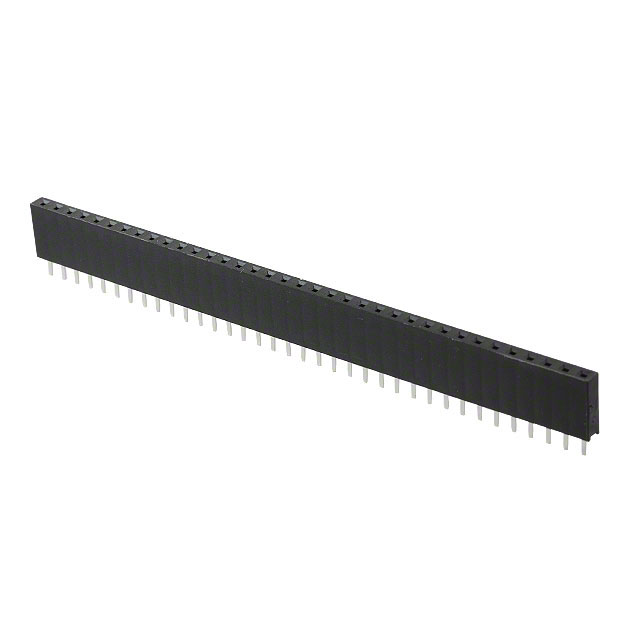

M20-7823646
ActiveHarwin Inc.
BOARD CONNECTOR, 36 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
M20-7823646
ActiveHarwin Inc.
BOARD CONNECTOR, 36 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M20-7823646 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Receptacle |
| Contact Finish - Post | Tin |
| Contact Length - Post | 0.118 in |
| Contact Length - Post | 3 mm |
| Contact Material | Phosphor Bronze |
| Contact Shape | Square |
| Contact Type | Female Socket |
| Current Rating (Amps) | 3 A |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 0.335 " |
| Insulation Height | 8.51 mm |
| Insulation Material | Nylon 6T, Polyamide (PA6T) |
| Mated Stacking Heights | 12.63 mm, 11.04 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 36 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.1 in |
| Pitch - Mating | 2.54 mm |
| Style | Board to Board, Cable |
| Termination | Solder |
| Voltage Rating | 1000 VDC |
M20-782 Series
| Part | Contact Length - Post | Contact Length - Post | Connector Type | Insulation Color | Contact Finish - Mating | Termination | Number of Rows | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Fastening Type | Pitch - Mating | Pitch - Mating | Insulation Material | Contact Finish - Post | Material Flammability Rating | Mounting Type | Contact Material | Style | Voltage Rating | Contact Shape | Contact Type | Number of Positions Loaded | Insulation Height | Insulation Height | Applications | Mated Stacking Heights | Contact Finish Thickness - Mating | Number of Positions | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Gold | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | Flash | ||
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | ||||
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Gold | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | Flash | 16 | |
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Gold | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | Flash | 8 | |
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | 6 | |||
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Gold | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | Flash | 2 | |
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | 15 | |||
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Gold | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | Flash | 10 | |
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | 16 | |||
Harwin Inc. | 0.118 in | 3 mm | Receptacle | Black | Solder | 1 | 3 A | -40 °C | 105 ░C | Push-Pull | 0.1 in | 2.54 mm | Nylon 6T Polyamide (PA6T) | Tin | UL94 V-0 | Through Hole | Phosphor Bronze | Board to Board Cable | 1000 VDC | Square | Female Socket | All | 0.335 " | 8.51 mm | General Purpose Industrial Telecommunications | 11.04 mm 12.63 mm | 36 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M20-782 Series
36 Position Receptacle Connector 0.100" (2.54mm) Through Hole Tin
