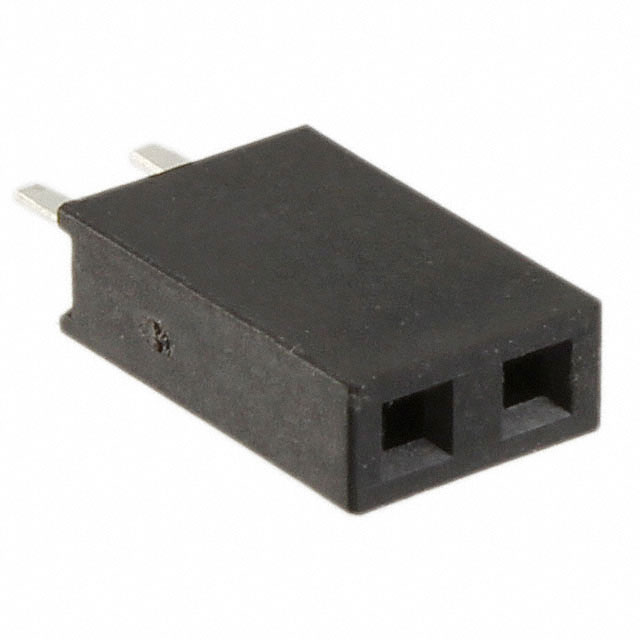

M20-7820242

Active

Harwin Inc.

CONNECTOR, RCPT, 2POS, 2.54MM, 1ROW

Deep-Dive with AI

DocumentsManufacturer Catalogue EN 3D Product Image EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7820242

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	12.63 mm, 11.04 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-782 Series

Part	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Color	Contact Finish - Mating	Termination	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Material Flammability Rating	Mounting Type	Contact Material	Style	Voltage Rating	Contact Shape	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Applications	Mated Stacking Heights	Contact Finish Thickness - Mating	Number of Positions	Number of Positions
Harwin Inc. M20-7820342	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash
Harwin Inc. M20-7820346	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm
Harwin Inc. M20-7821642	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash	16
Harwin Inc. M20-7820842	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		8
Harwin Inc. M20-7820646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			6
Harwin Inc. M20-7820242	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		2
Harwin Inc. M20-7821546	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			15
Harwin Inc. M20-7821042	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		10
Harwin Inc. M20-7821646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm		16
Harwin Inc. M20-7823646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			36
