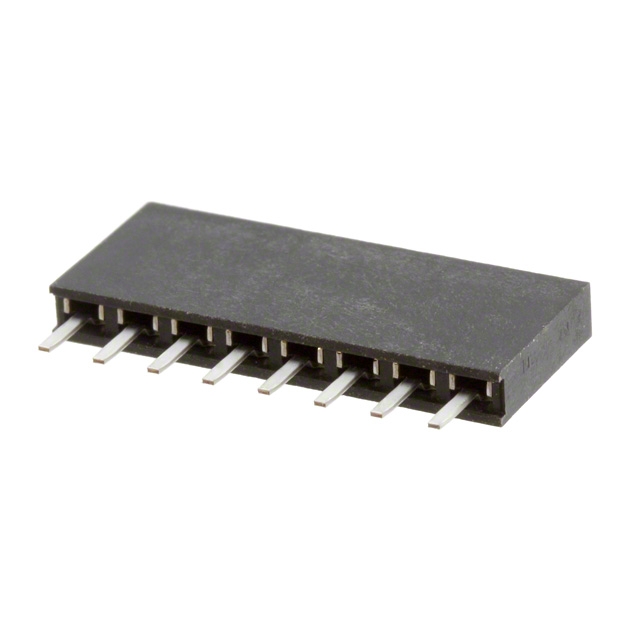

M20-7820842

Active

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM20 Series Spec Sheet M20-003 +1

M20-7820842

Active

Harwin Inc.

BOARD CONNECTOR, 8 CONTACT(S), 1 ROW(S), FEMALE, STRAIGHT, 0.1 INCH PITCH, SOLDER TERMINAL, LOCKING, BLACK INSULATOR, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

DocumentsM20 Series Spec Sheet M20-003 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M20-7820842

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Nylon 6T, Polyamide (PA6T)
Mated Stacking Heights	12.63 mm, 11.04 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	1000 VDC

M20-782 Series

Part	Contact Length - Post	Contact Length - Post	Connector Type	Insulation Color	Contact Finish - Mating	Termination	Number of Rows	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Fastening Type	Pitch - Mating	Pitch - Mating	Insulation Material	Contact Finish - Post	Material Flammability Rating	Mounting Type	Contact Material	Style	Voltage Rating	Contact Shape	Contact Type	Number of Positions Loaded	Insulation Height	Insulation Height	Applications	Mated Stacking Heights	Contact Finish Thickness - Mating	Number of Positions	Number of Positions
Harwin Inc. M20-7820342	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash
Harwin Inc. M20-7820346	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm
Harwin Inc. M20-7821642	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash	16
Harwin Inc. M20-7820842	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		8
Harwin Inc. M20-7820646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			6
Harwin Inc. M20-7820242	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		2
Harwin Inc. M20-7821546	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			15
Harwin Inc. M20-7821042	0.118 in	3 mm	Receptacle	Black	Gold	Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm	Flash		10
Harwin Inc. M20-7821646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm		16
Harwin Inc. M20-7823646	0.118 in	3 mm	Receptacle	Black		Solder	1	3 A	-40 °C	105 ░C	Push-Pull	0.1 in	2.54 mm	Nylon 6T Polyamide (PA6T)	Tin	UL94 V-0	Through Hole	Phosphor Bronze	Board to Board Cable	1000 VDC	Square	Female Socket	All	0.335 "	8.51 mm	General Purpose Industrial Telecommunications	11.04 mm 12.63 mm			36

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 1.44
		27	$ 1.17
		108	$ 1.09
		513	$ 0.89
		1026	$ 0.79
		5022	$ 0.69
		10017	$ 0.66
