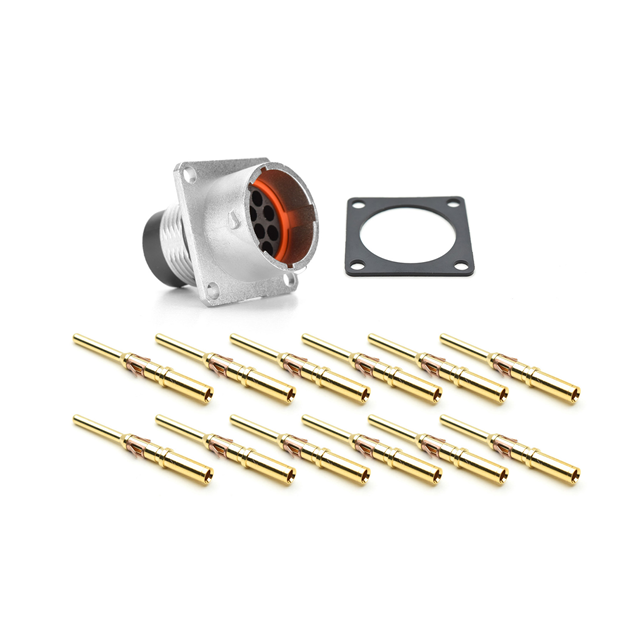

RT001412PKNH03-K
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 12POS GOLD CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
RT001412PKNH03-K
ActiveAmphenol Sine Systems Corp
CONN RCPT MALE 12POS GOLD CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RT001412PKNH03-K |
|---|---|
| Applications | Automation, Aerospace, Telecom, Industrial, Transportation |
| Color | Silver |
| Connector Type | Receptacle, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Material | Brass |
| Current Rating (Amps) | 13 A |
| Fastening Type | Bayonet Lock |
| Ingress Protection | IP69K, IP67 |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Number of Positions | 12 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Zinc Die Cast |
| Shell Size - Insert | 14-12 |
| Shielding | Shielded |
| Termination | Crimp |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 27.39 | |
| 10 | $ 23.99 | |||
| 25 | $ 22.95 | |||
| 50 | $ 22.21 | |||
| 100 | $ 21.47 | |||
| 250 | $ 20.29 | |||
| 500 | $ 19.69 | |||
Description
General part information
RT001412 Series
12 Position Circular Connector Receptacle, Male Pins Crimp
