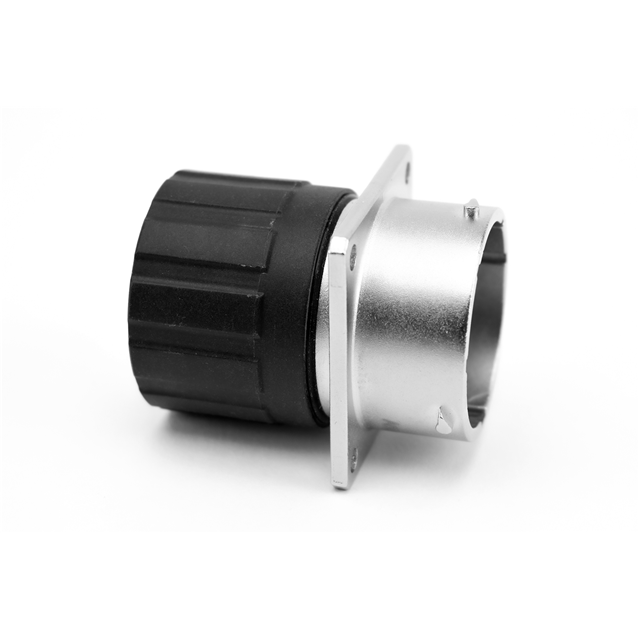

RT001412SNHEC

Active

Amphenol Sine Systems Corp

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet +1

RT001412SNHEC

Active

Amphenol Sine Systems Corp

SQUARE FLANGE RECEPTACLE, FEMALE

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT001412SNHEC

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	16
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Backshell
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	14-12
Shielding	Shielded
Type	For Female Sockets

RT001412 Series

Part	Orientation	Primary Material	Mounting Feature	Contact Shape	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shielding	Material Flammability Rating	Ingress Protection	Connector Type	Note	Contact Size	Insert Material	Type	Number of Positions	Shell Size - Insert	Fastening Type	Shell Finish	Contact Type	Housing Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Color	Current Rating (Amps)	Termination	Applications	Contact Material
Amphenol Sine Systems Corp RT001412PNHECR	N	Metal	Flange	Circular	Zinc Alloy	-40 °C	105 ░C	Cap (Cover)	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Male Pins	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412PNH-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C				IP67 - Dust Tight Waterproof	Male Pins Receptacle					12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp
Amphenol Sine Systems Corp RT001412SKNH03-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C		Shielded	UL94 V-0	IP67 IP69K	Receptacle Female Sockets			Polyamide (PA66) Nylon 6/6		12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp	Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT001412SNH-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C				IP67 - Dust Tight Waterproof	Receptacle Female Sockets					12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp
Amphenol Sine Systems Corp RT001412SNHEC03R	N		Flange	Circular	Zinc Alloy	-40 °C	125 °C	Backshell	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Female Sockets	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412SNHEC	N		Flange	Circular	Zinc Alloy	-40 °C	105 ░C	Backshell	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Female Sockets	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412PKNH03-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C		Shielded	UL94 V-0	IP67 IP69K	Male Pins Receptacle			Polyamide (PA66) Nylon 6/6		12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp	Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT001412PNHEC03	N	Metal	Flange	Circular	Zinc Alloy	-40 °C	125 °C	Cap (Cover)	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Male Pins	12	14-12	Bayonet Lock	Nickel	Crimp	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 13.62

Description

General part information

RT001412 Series

12 Position Circular Connector Receptacle Housing Panel Mount Backshell

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RM, RSSM, RM Flyer

Datasheet
