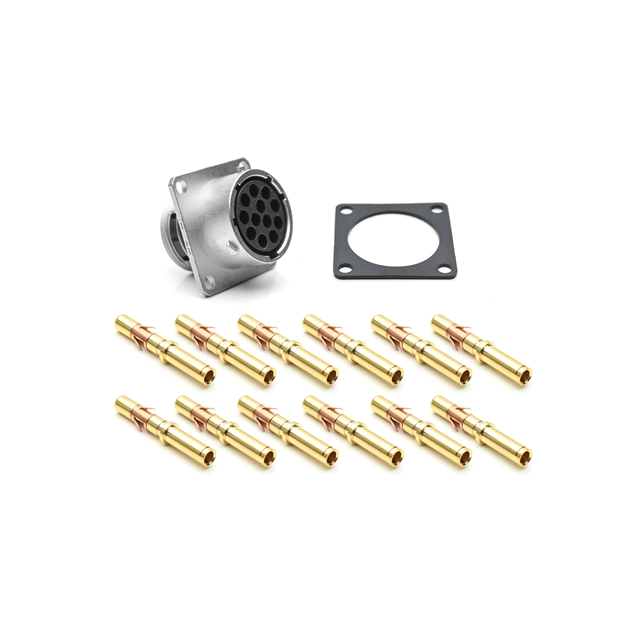

RT001412SKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 12POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documentsecomate-Family-Flyer-2019 Datasheet +1

RT001412SKNH03-K

Active

Amphenol Sine Systems Corp

CONN RCPT FMALE 12POS GOLD CRIMP

Deep-Dive with AI

Documentsecomate-Family-Flyer-2019 Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RT001412SKNH03-K

Applications	Automation, Aerospace, Telecom, Industrial, Transportation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Material	Brass
Current Rating (Amps)	13 A
Fastening Type	Bayonet Lock
Ingress Protection	IP69K, IP67
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	12
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	14-12
Shielding	Shielded
Termination	Crimp
Voltage Rating	250 VAC

RT001412 Series

Part	Orientation	Primary Material	Mounting Feature	Contact Shape	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Features	Shielding	Material Flammability Rating	Ingress Protection	Connector Type	Note	Contact Size	Insert Material	Type	Number of Positions	Shell Size - Insert	Fastening Type	Shell Finish	Contact Type	Housing Color	Voltage Rating	Contact Finish Thickness - Mating	Contact Finish - Mating	Color	Current Rating (Amps)	Termination	Applications	Contact Material
Amphenol Sine Systems Corp RT001412PNHECR	N	Metal	Flange	Circular	Zinc Alloy	-40 °C	105 ░C	Cap (Cover)	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Male Pins	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412PNH-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C				IP67 - Dust Tight Waterproof	Male Pins Receptacle					12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp
Amphenol Sine Systems Corp RT001412SKNH03-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C		Shielded	UL94 V-0	IP67 IP69K	Receptacle Female Sockets			Polyamide (PA66) Nylon 6/6		12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp	Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT001412SNH-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C				IP67 - Dust Tight Waterproof	Receptacle Female Sockets					12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp
Amphenol Sine Systems Corp RT001412SNHEC03R	N		Flange	Circular	Zinc Alloy	-40 °C	125 °C	Backshell	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Female Sockets	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412SNHEC	N		Flange	Circular	Zinc Alloy	-40 °C	105 ░C	Backshell	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Female Sockets	12	14-12	Bayonet Lock	Nickel	Crimp	Silver
Amphenol Sine Systems Corp RT001412PKNH03-K	N	Metal	Flange		Zinc Die Cast	-40 °C	105 ░C		Shielded	UL94 V-0	IP67 IP69K	Male Pins Receptacle			Polyamide (PA66) Nylon 6/6		12	14-12	Bayonet Lock	Nickel			250 VAC	Flash	Gold	Silver	13 A	Crimp	Aerospace Automation Industrial Telecom Transportation	Brass
Amphenol Sine Systems Corp RT001412PNHEC03	N	Metal	Flange	Circular	Zinc Alloy	-40 °C	125 °C	Cap (Cover)	Shielded	UL94 V-0	IP67 - Dust Tight Waterproof	Receptacle Housing	Contacts Not Included	16	Thermoplastic	For Male Pins	12	14-12	Bayonet Lock	Nickel	Crimp	Silver

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 17.60
		10	$ 16.75

Description

General part information

RT001412 Series

12 Position Circular Connector Receptacle, Female Sockets Crimp

Documents

Technical documentation and resources

ecomate-Family-Flyer-2019

Datasheet

ecomate RSSM

Datasheet
