4301.6207

Active

SCHURTER Inc.

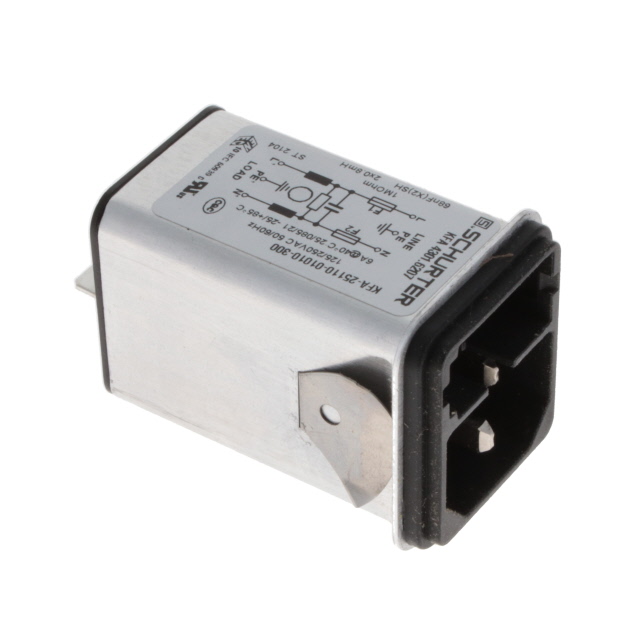

FILTERED IEC POWER ENTRY MODULE, IEC C14, MEDICAL, 6 A, 250 VAC, 2-POLE FUSE HOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN +1

4301.6207

Active

SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C14, MEDICAL, 6 A, 250 VAC, 2-POLE FUSE HOLDER

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4301.6207

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	6 A
Current Rating - Filter	6 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.35 mm
Panel Cutout Dimensions [y]	33 mm
Panel Thickness [Max]	0.118 in
Panel Thickness [Max]	3 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

kfa Series

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Part	Termination	Termination	Termination	Mounting Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Material Flammability Rating	Current Rating - Filter	Connector Style	Approval Agency	Connector Type	Filter Type	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features
SCHURTER Inc. 4301.7209	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40
SCHURTER Inc. 4301.8054	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm
SCHURTER Inc. 4301.6205	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Drawer Sold Separate	4 A	250 VAC	UL94 V-0	4 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29.35 mm	0.79 mm	0.118 in	3 mm	0.031 "
SCHURTER Inc. 4301.8050	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	1 A	250 VAC	UL94 V-0	1 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm
SCHURTER Inc. 4301.5208										IEC 320-C14		Receptacle Male Blades - Module
SCHURTER Inc. 4301.5041		0.189 " 4.8 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	1 A	250 VAC	UL94 V-0	1 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm					Voltage Selector
SCHURTER Inc. 4301.7002	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	2 A	250 VAC	UL94 V-0	2 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40
SCHURTER Inc. 4301.6207	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Drawer Sold Separate	6 A	250 VAC	UL94 V-0	6 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29.35 mm	0.79 mm	0.118 in	3 mm	0.031 "
SCHURTER Inc. 4301.5200	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29 mm
SCHURTER Inc. 4301.5053		0.189 " 4.8 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	4 A	250 VAC	UL94 V-0	4 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm					Voltage Selector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.57
		50	$ 31.16
Newark	Each	1	$ 65.69
		10	$ 58.37
		25	$ 52.35
		50	$ 49.47
		100	$ 38.74
TME	N/A	1	$ 30.07
		2	$ 26.93
		5	$ 23.94
		10	$ 20.94

Description

General part information

kfa Series

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Documents

Technical documentation and resources

Datasheet

Product Change Notice EN

Datasheet

Technical Data Sheet EN

Datasheet
