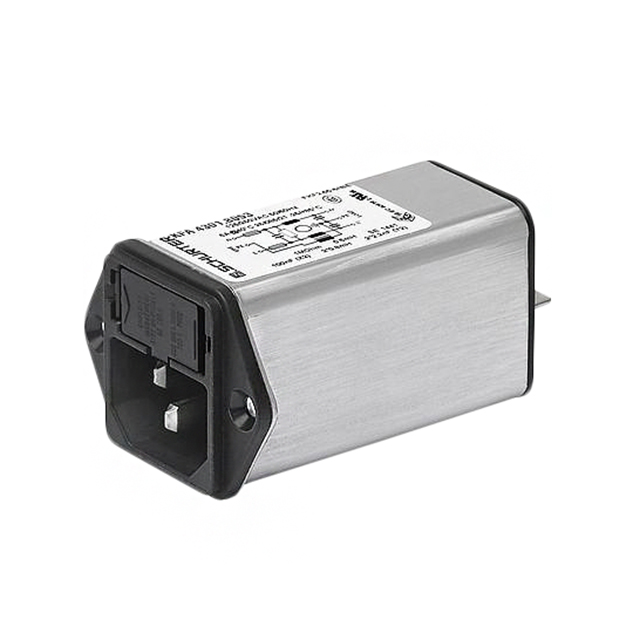

4301.7209

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KFA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4301.7209

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 10A; 250VAC; C14 (E); KFA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4301.7209

Accomodates a Fuse	True
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Fuse Holder, Drawer	Drawer Sold Separate
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

kfa Series

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A

Part	Termination	Termination	Termination	Mounting Type	Fuse Holder, Drawer	Current Rating - Appliance Inlet	Voltage Rating - Appliance Inlet	Material Flammability Rating	Current Rating - Filter	Connector Style	Approval Agency	Connector Type	Filter Type	Ingress Protection	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Features
SCHURTER Inc. 4301.7209	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40
SCHURTER Inc. 4301.8054	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm
SCHURTER Inc. 4301.6205	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Drawer Sold Separate	4 A	250 VAC	UL94 V-0	4 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29.35 mm	0.79 mm	0.118 in	3 mm	0.031 "
SCHURTER Inc. 4301.8050	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	1 A	250 VAC	UL94 V-0	1 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm
SCHURTER Inc. 4301.5208										IEC 320-C14		Receptacle Male Blades - Module
SCHURTER Inc. 4301.5041		0.189 " 4.8 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	1 A	250 VAC	UL94 V-0	1 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm					Voltage Selector
SCHURTER Inc. 4301.7002	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	2 A	250 VAC	UL94 V-0	2 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40
SCHURTER Inc. 4301.6207	0.25 in	6.3 mm	Quick Connect	Panel Mount Snap-In	Drawer Sold Separate	6 A	250 VAC	UL94 V-0	6 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29.35 mm	0.79 mm	0.118 in	3 mm	0.031 "
SCHURTER Inc. 4301.5200	0.25 in	6.3 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	10 A	250 VAC	UL94 V-0	10 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial Medical	IP40	33 mm	29 mm
SCHURTER Inc. 4301.5053		0.189 " 4.8 mm	Quick Connect	Flange Panel Mount	Drawer Sold Separate	4 A	250 VAC	UL94 V-0	4 A	IEC 320-C14	CCC cULus ENEC	Receptacle Male Blades - Module	Filtered (EMI RFI) - Commercial	IP40	33 mm	29 mm					Voltage Selector

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 41.53
		50	$ 30.40
TME	N/A	1	$ 30.07
		2	$ 26.93
		5	$ 23.94
		10	$ 20.94

Description

General part information

kfa Series

AC Power Entry Modules KEA PWR ENTRY MODUL W. FILTER 6A
