0193240014

Active

Molex

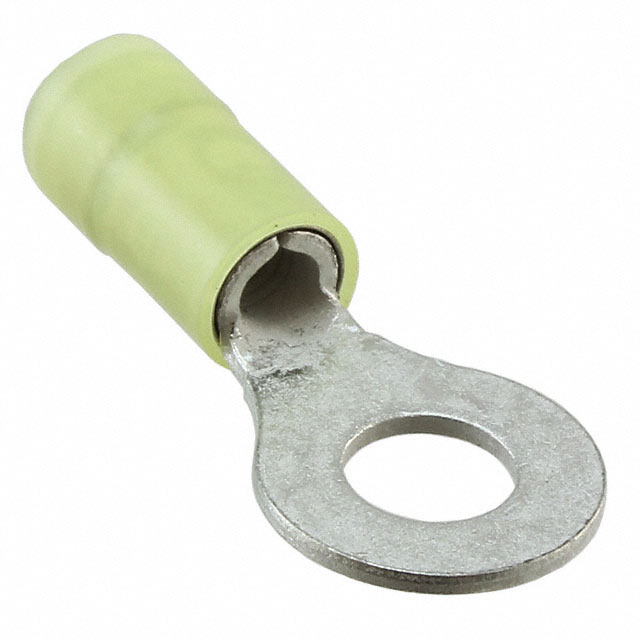

CONN RING CIRC 2.5-6MM M6 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Datasheet

0193240014

Active

Molex

CONN RING CIRC 2.5-6MM M6 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0193240014

Color	Yellow
Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Insulated
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	M6 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.04 in
Thickness	1.02 mm
Width - Outer Edges	13.46 mm
Width - Outer Edges [y]	0.53 in
Wire Gauge [Max]	6 mm²
Wire Gauge [Min]	2.5 mm²

019324 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Insulation	Contact Material	Contact Finish	Terminal Type	Material - Insulation	Features	Mounting Type	Thickness	Thickness	Stud/Tab Size	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges
Molex 0193240012	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M4 Stud	Yellow	0.282 in	7.16 mm
Molex 0193240002	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M3 Stud	Red			0.254 in	6.45 mm
Molex 0193240030	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M3 Stud	Blue			0.25 "	6.35 mm
Molex 0193240001	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M2.5 Stud	Red			0.254 in	6.45 mm
Molex 0193240004	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M4 Stud	Red			0.312 in	7.92 mm
Molex 0193240006	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.031 in	0.79 mm	M3 Stud	Blue			0.25 "	6.35 mm
Molex 0193240008	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.031 in	0.79 mm	M4 Stud	Blue			0.312 in	7.92 mm
Molex 0193240013	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M5 Stud	Yellow	0.375 in	9.53 mm
Molex 0193240015	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M8 Stud	Yellow			0.53 in		13.46 mm
Molex 0193240014	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M6 Stud	Yellow			0.53 in		13.46 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.84
		10	$ 0.63
		25	$ 0.57
		50	$ 0.52
		100	$ 0.49
		250	$ 0.44
		500	$ 0.42
		1000	$ 0.39
		2500	$ 0.37

Description

General part information

019324 Series

Ring Terminal Connector M6 Stud Circular 2.5 ~ 6.0mm² Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
