0193240004
ActiveMolex

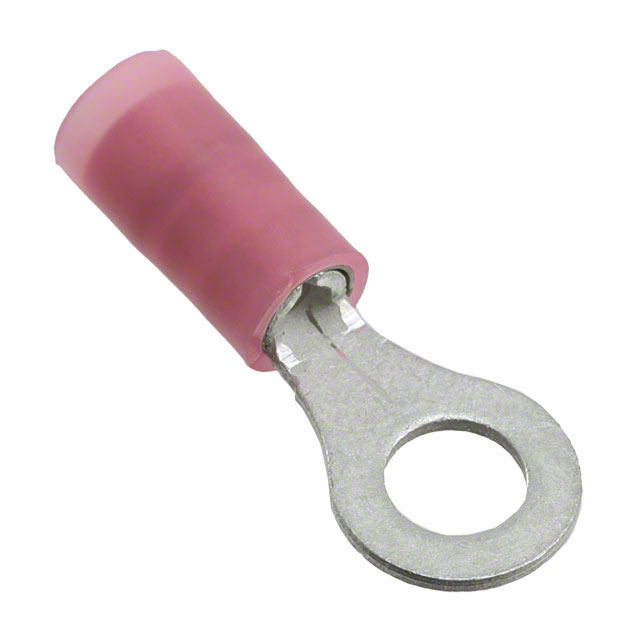

CONN RING CIRC 0.5-1MM M4 CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
0193240004
ActiveMolex
CONN RING CIRC 0.5-1MM M4 CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0193240004 |
|---|---|
| Color | Red |
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Insulated |
| Material - Insulation | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M4 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.71 mm |
| Thickness | 0.028 in |
| Width - Outer Edges [y] | 7.92 mm |
| Width - Outer Edges [y] | 0.312 in |
| Wire Gauge [Max] | 1 mm² |
| Wire Gauge [Min] | 0.5 mm² |
019324 Series
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Termination | Insulation | Contact Material | Contact Finish | Terminal Type | Material - Insulation | Features | Mounting Type | Thickness | Thickness | Stud/Tab Size | Color | Width - Outer Edges [x] | Width - Outer Edges [x] | Width - Outer Edges [y] | Width - Outer Edges [y] | Width - Outer Edges |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 6 mm² | 2.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.04 in | 1.02 mm | M4 Stud | Yellow | 0.282 in | 7.16 mm | |||
Molex | 1 mm² | 0.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.028 in | 0.71 mm | M3 Stud | Red | 0.254 in | 6.45 mm | |||
Molex | 2.5 mm˛ | 1 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.04 in | 1.02 mm | M3 Stud | Blue | 0.25 " | 6.35 mm | |||
Molex | 1 mm² | 0.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.028 in | 0.71 mm | M2.5 Stud | Red | 0.254 in | 6.45 mm | |||
Molex | 1 mm² | 0.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.028 in | 0.71 mm | M4 Stud | Red | 0.312 in | 7.92 mm | |||
Molex | 2.5 mm˛ | 1 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.031 in | 0.79 mm | M3 Stud | Blue | 0.25 " | 6.35 mm | |||
Molex | 2.5 mm˛ | 1 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.031 in | 0.79 mm | M4 Stud | Blue | 0.312 in | 7.92 mm | |||
Molex | 6 mm² | 2.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.04 in | 1.02 mm | M5 Stud | Yellow | 0.375 in | 9.53 mm | |||
Molex | 6 mm² | 2.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.04 in | 1.02 mm | M8 Stud | Yellow | 0.53 in | 13.46 mm | |||
Molex | 6 mm² | 2.5 mm² | Crimp | Insulated | Copper | Tin | Circular | Nylon Polyamide (PA) | Brazed Seam | Free Hanging (In-Line) | 0.04 in | 1.02 mm | M6 Stud | Yellow | 0.53 in | 13.46 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.52 | |
| 10 | $ 0.44 | |||
| 100 | $ 0.34 | |||
| 1000 | $ 0.27 | |||
| 3000 | $ 0.24 | |||
Description
General part information
019324 Series
Ring Terminal Connector M4 Stud Circular 0.5 ~ 1.0mm² Crimp
