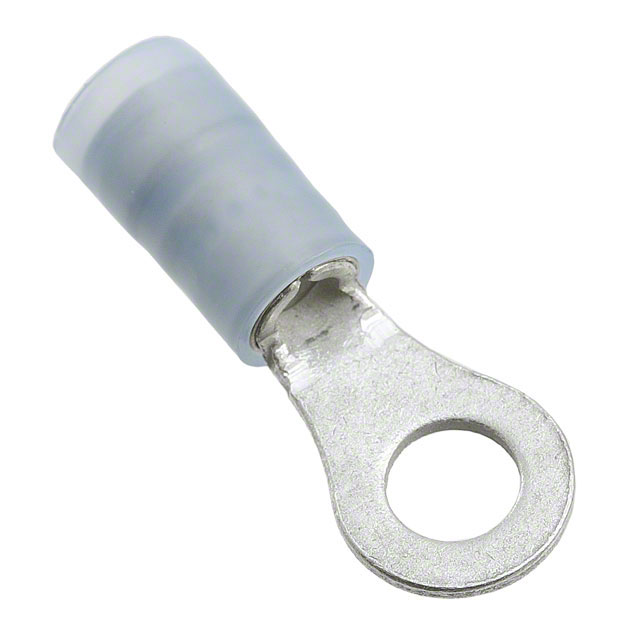

0193240008

Active

Molex

CONN RING CIRC 1-2.5MM M4 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet 0190440069 Drawing/Datasheet

0193240008

Active

Molex

CONN RING CIRC 1-2.5MM M4 CRIMP

Deep-Dive with AI

DocumentsDatasheet 0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0193240008

Color	Blue
Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Insulated
Material - Insulation	Nylon, Polyamide (PA)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	M4 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.031 in
Thickness	0.79 mm
Width - Outer Edges [y]	7.92 mm
Width - Outer Edges [y]	0.312 in
Wire Gauge [Max]	2.5 mm˛
Wire Gauge [Min]	1 mm²

019324 Series

Part	Wire Gauge [Max]	Wire Gauge [Min]	Termination	Insulation	Contact Material	Contact Finish	Terminal Type	Material - Insulation	Features	Mounting Type	Thickness	Thickness	Stud/Tab Size	Color	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges [y]	Width - Outer Edges [y]	Width - Outer Edges
Molex 0193240012	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M4 Stud	Yellow	0.282 in	7.16 mm
Molex 0193240002	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M3 Stud	Red			0.254 in	6.45 mm
Molex 0193240030	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M3 Stud	Blue			0.25 "	6.35 mm
Molex 0193240001	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M2.5 Stud	Red			0.254 in	6.45 mm
Molex 0193240004	1 mm²	0.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.028 in	0.71 mm	M4 Stud	Red			0.312 in	7.92 mm
Molex 0193240006	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.031 in	0.79 mm	M3 Stud	Blue			0.25 "	6.35 mm
Molex 0193240008	2.5 mm˛	1 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.031 in	0.79 mm	M4 Stud	Blue			0.312 in	7.92 mm
Molex 0193240013	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M5 Stud	Yellow	0.375 in	9.53 mm
Molex 0193240015	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M8 Stud	Yellow			0.53 in		13.46 mm
Molex 0193240014	6 mm²	2.5 mm²	Crimp	Insulated	Copper	Tin	Circular	Nylon Polyamide (PA)	Brazed Seam	Free Hanging (In-Line)	0.04 in	1.02 mm	M6 Stud	Yellow			0.53 in		13.46 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.70
		10	$ 0.52
		25	$ 0.47
		50	$ 0.43
		100	$ 0.40
		250	$ 0.37
		500	$ 0.34
		1000	$ 0.32
		2500	$ 0.30

Description

General part information

019324 Series

Ring Terminal Connector M4 Stud Circular 1.0 ~ 2.5mm˛ Crimp

Documents

Technical documentation and resources

Datasheet

0190440069 Drawing/Datasheet

Datasheet
