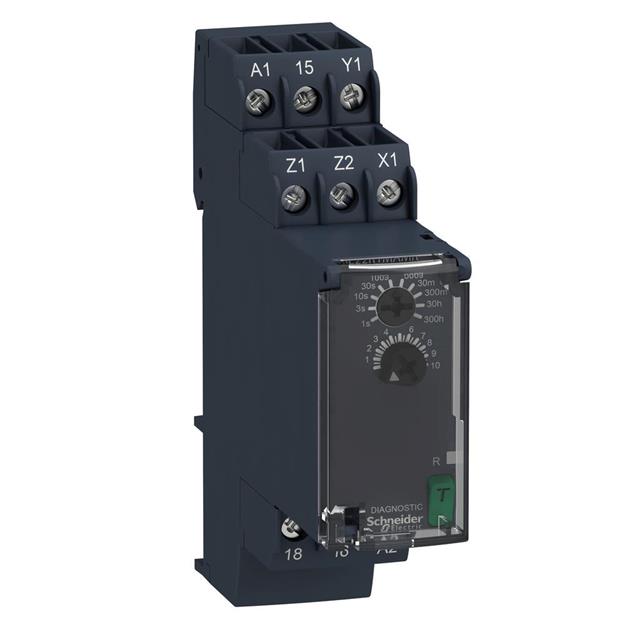

RE22R1MAMR

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, 0.05 S, 300 H, ZELIO TIME RE22 SERIES, SPDT, 8 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Manufacturer Catalogue EN +3

RE22R1MAMR

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, 0.05 S, 300 H, ZELIO TIME RE22 SERIES, SPDT, 8 A

Deep-Dive with AI

DocumentsDatasheet Manufacturer Catalogue EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RE22R1MAMR

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	300 Hrs
Delay Time [Min]	0.05 Sec
Function	On-Delay
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

RE22R Series

Part	Function	Relay Type	Termination Style	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Contact Rating @ Voltage	Circuit	Delay Time [Max]	Delay Time [Min]
SQUARE D BY SCHNEIDER ELECTRIC RE22R2QGMR	Star Delta Controller	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1MYMR	Programmable (Multi-Function)	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1DMR	Repeat Cycle	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2HMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1HMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2ACMR	Off-Delay On-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1MAMR	On-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2MWMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage Trigger Signal	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1CMR	Off-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2QEMR	Star Delta Controller	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	30 Sec	0.3 Sec

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 86.69
		10	$ 81.88
		25	$ 77.06
		50	$ 72.24
		100	$ 68.17
Newark	Each	1	$ 99.34
		5	$ 93.32
		10	$ 82.78
		25	$ 75.76
		50	$ 72.25
		100	$ 68.74

Description

General part information

RE22R Series

On-Delay Time Delay Relay SPDT (1 Form C) 0.05 Sec ~ 300 Hrs Delay 8A @ 250VAC DIN Rail
