RE22R1DMR

Active

SQUARE D BY SCHNEIDER ELECTRIC

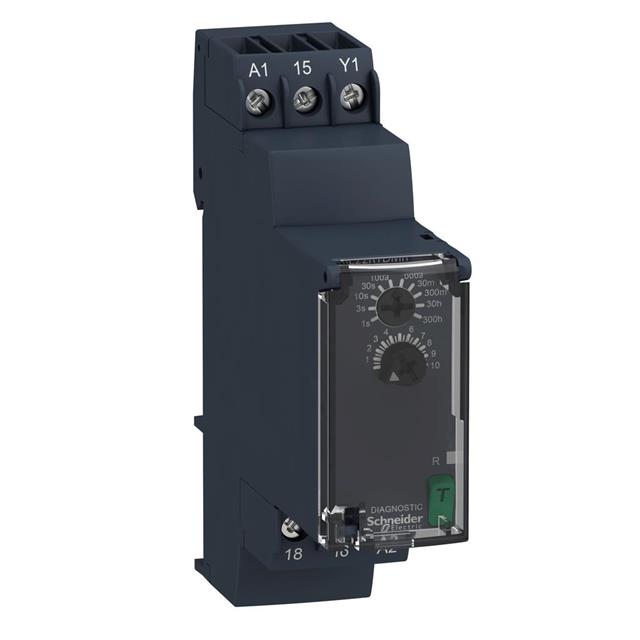

TIME DELAY RELAY, 0.05 S, 300 H, ZELIO RE22 SERIES, SPDT, 8 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Handling Instructions EN +2

RE22R1DMR

Active

SQUARE D BY SCHNEIDER ELECTRIC

TIME DELAY RELAY, 0.05 S, 300 H, ZELIO RE22 SERIES, SPDT, 8 A

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Handling Instructions EN +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RE22R1DMR

Contact Rating @ Voltage	250 VAC, 8 A
Delay Time [Max]	300 Hrs
Delay Time [Min]	0.05 Sec
Function	Repeat Cycle
Mounting Type	DIN Rail
Relay Type	Mechanical Relay
Termination Style	Screw Terminal
Timing Adjustment Method	Screwdriver Slot
Timing Initiate Method	Input Voltage
Voltage - Supply [Max]	240 VAC
Voltage - Supply [Min]	24 VAC

RE22R Series

Part	Function	Relay Type	Termination Style	Timing Adjustment Method	Timing Initiate Method	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Contact Rating @ Voltage	Circuit	Delay Time [Max]	Delay Time [Min]
SQUARE D BY SCHNEIDER ELECTRIC RE22R2QGMR	Star Delta Controller	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1MYMR	Programmable (Multi-Function)	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1DMR	Repeat Cycle	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2HMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1HMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2ACMR	Off-Delay On-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1MAMR	On-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2MWMR	Interval	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage Trigger Signal	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R1CMR	Off-Delay	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC		300 Hrs	0.05 Sec
SQUARE D BY SCHNEIDER ELECTRIC RE22R2QEMR	Star Delta Controller	Mechanical Relay	Screw Terminal	Screwdriver Slot	Input Voltage	24 VAC	240 VAC	DIN Rail	8 A 250 VAC	DPDT (2 Form C)	30 Sec	0.3 Sec
