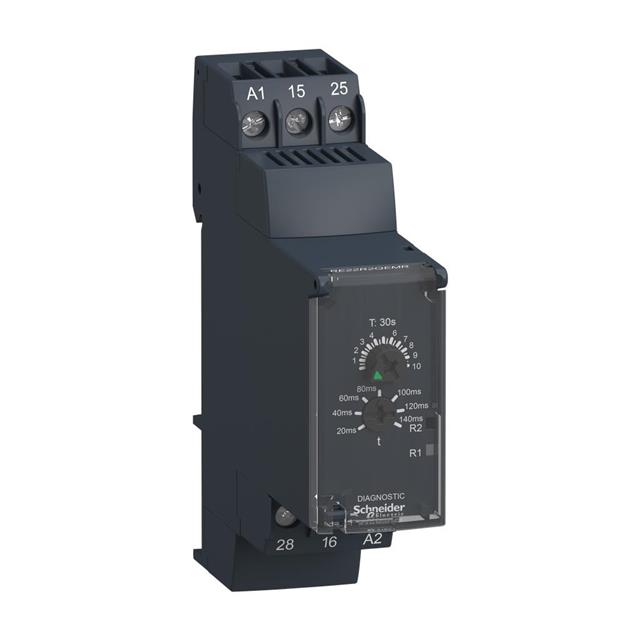

RE22R2QEMR
ActiveTIME DELAY RELAY, 0.3 S, 30 S, ZELIO RE22 SERIES, DPDT, 8 A
Deep-Dive with AI
Search across all available documentation for this part.
RE22R2QEMR
ActiveTIME DELAY RELAY, 0.3 S, 30 S, ZELIO RE22 SERIES, DPDT, 8 A
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RE22R2QEMR |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating @ Voltage | 250 VAC, 8 A |
| Delay Time [Max] | 30 Sec |
| Delay Time [Min] | 0.3 Sec |
| Function | Star Delta Controller |
| Mounting Type | DIN Rail |
| Relay Type | Mechanical Relay |
| Termination Style | Screw Terminal |
| Timing Adjustment Method | Screwdriver Slot |
| Timing Initiate Method | Input Voltage |
| Voltage - Supply [Max] | 240 VAC |
| Voltage - Supply [Min] | 24 VAC |
RE22R Series
| Part | Function | Relay Type | Termination Style | Timing Adjustment Method | Timing Initiate Method | Voltage - Supply [Min] | Voltage - Supply [Max] | Mounting Type | Contact Rating @ Voltage | Circuit | Delay Time [Max] | Delay Time [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
SQUARE D BY SCHNEIDER ELECTRIC | Star Delta Controller | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | DPDT (2 Form C) | 300 Hrs | 0.05 Sec |
SQUARE D BY SCHNEIDER ELECTRIC | Programmable (Multi-Function) | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | 300 Hrs | 0.05 Sec | |
SQUARE D BY SCHNEIDER ELECTRIC | Repeat Cycle | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | 300 Hrs | 0.05 Sec | |
SQUARE D BY SCHNEIDER ELECTRIC | Interval | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | DPDT (2 Form C) | 300 Hrs | 0.05 Sec |
SQUARE D BY SCHNEIDER ELECTRIC | Interval | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | 300 Hrs | 0.05 Sec | |
SQUARE D BY SCHNEIDER ELECTRIC | Off-Delay On-Delay | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | DPDT (2 Form C) | 300 Hrs | 0.05 Sec |
SQUARE D BY SCHNEIDER ELECTRIC | On-Delay | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | 300 Hrs | 0.05 Sec | |
SQUARE D BY SCHNEIDER ELECTRIC | Interval | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage Trigger Signal | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | DPDT (2 Form C) | 300 Hrs | 0.05 Sec |
SQUARE D BY SCHNEIDER ELECTRIC | Off-Delay | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | 300 Hrs | 0.05 Sec | |
SQUARE D BY SCHNEIDER ELECTRIC | Star Delta Controller | Mechanical Relay | Screw Terminal | Screwdriver Slot | Input Voltage | 24 VAC | 240 VAC | DIN Rail | 8 A 250 VAC | DPDT (2 Form C) | 30 Sec | 0.3 Sec |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
RE22R Series
Zelio Time RE22 modular single function timer can be set between 1seconds and 300hours. It has an output rating of 8A and it is 22.5mm wide. It provides function Qe and it is mountable on DIN rail. This modular single function timing relay is ideal for providing timing control in automation systems such as automatic door opening, alarm, lighting in toilets and car park barriers. It has one of market slimmest form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 2-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers.
