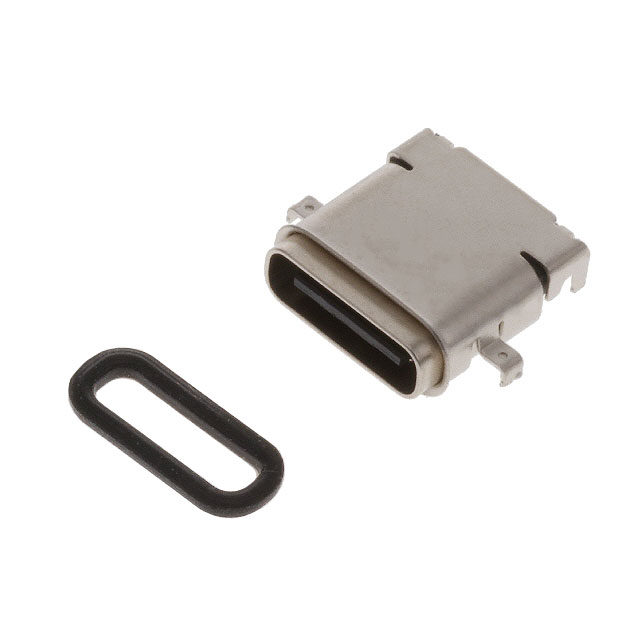

UJ31-CH-3-MSMT-TR-67
ActiveCUI Devices
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UJ31-CH-3-MSMT-TR-67
ActiveCUI Devices
CONN RCPT USB3.1 TYPEC 24POS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UJ31-CH-3-MSMT-TR-67 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 6.25 A, 5 A, 1.25 A, 0.25 A |
| Features | 15 µ |
| Gender | Receptacle |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal, Mid Mount |
| Mounting Type | Board Edge, Cutout, Through Hole, Right Angle, Surface Mount |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 4.87 | |
| 10 | $ 3.73 | |||
| 25 | $ 3.36 | |||
| 50 | $ 3.11 | |||
| 100 | $ 2.89 | |||
| 250 | $ 2.62 | |||
| Digi-Reel® | 1 | $ 4.87 | ||
| 10 | $ 3.73 | |||
| 25 | $ 3.36 | |||
| 50 | $ 3.11 | |||
| 100 | $ 2.89 | |||
| 250 | $ 2.62 | |||
| Tape & Reel (TR) | 700 | $ 2.75 | ||
| 1400 | $ 2.34 | |||
| 2100 | $ 2.26 | |||
| 3500 | $ 2.18 | |||
Description
General part information
UJ31-CH Series
USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Documents
Technical documentation and resources
