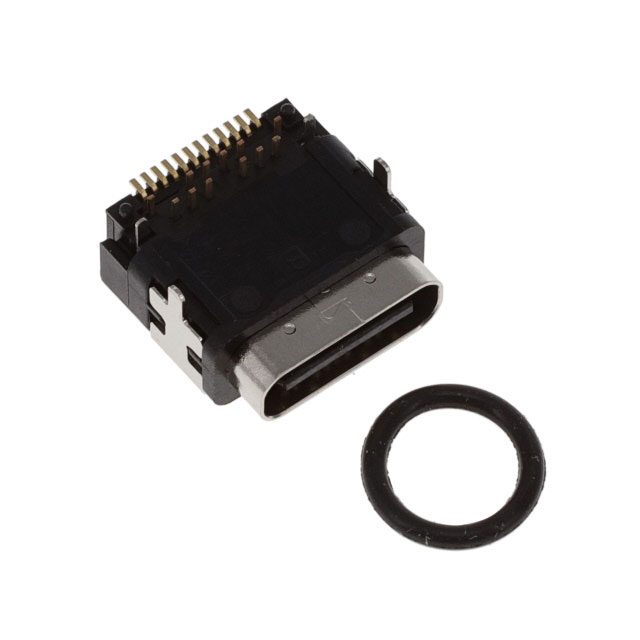

UJ31-CH-G-SMT-TR-67

Active

CUI Devices

USB JACK 3.1, GEN 2, C TYPE, 24

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UJ31-CH-G-SMT-TR-67

Active

CUI Devices

USB JACK 3.1, GEN 2, C TYPE, 24

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UJ31-CH-G-SMT-TR-67

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	0.25 A, 1.25 A, 5 A
Features	Board Guide
Gender	Receptacle
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder
Voltage - Rated	20 V

UJ31-CH Series

Part	Mating Cycles	Gender	Number of Ports	Shielding	Connector Type	Specifications	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Contact Finish	Features	Number of Contacts	Mounting Feature	Termination	Material Flammability Rating	Features	Ingress Protection	Insulation Color	Voltage - Rated
CUI Devices UJ31-CH-314-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-4-MSMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Board Edge Cutout Surface Mount Through Hole Right Angle	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide Flash Finish Thickness	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-G1-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-25 °C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-31-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-3-MSMT-TR-67	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Board Edge Cutout Surface Mount Through Hole Right Angle	-40 °C	80 C	Stainless Steel	Gold		24	Horizontal Mid Mount	Solder	UL94 V-0	15 µ	IP67 - Dust Tight Waterproof	Black
CUI Devices UJ31-CH-G-SMT-TR-67	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A	Surface Mount Right Angle Through Hole	-25 °C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0		IP67 - Dust Tight Waterproof	Black	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.21
		10	$ 2.92
		25	$ 2.76
		50	$ 2.70
		100	$ 2.57
		250	$ 2.25
	Digi-Reel®	1	$ 3.21
		10	$ 2.92
		25	$ 2.76
		50	$ 2.70
		100	$ 2.57
		250	$ 2.25
	Tape & Reel (TR)	900	$ 2.34
		1800	$ 2.11
		2700	$ 2.04

Description

General part information

UJ31-CH Series

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Surface Mount, Right Angle; Through Hole
