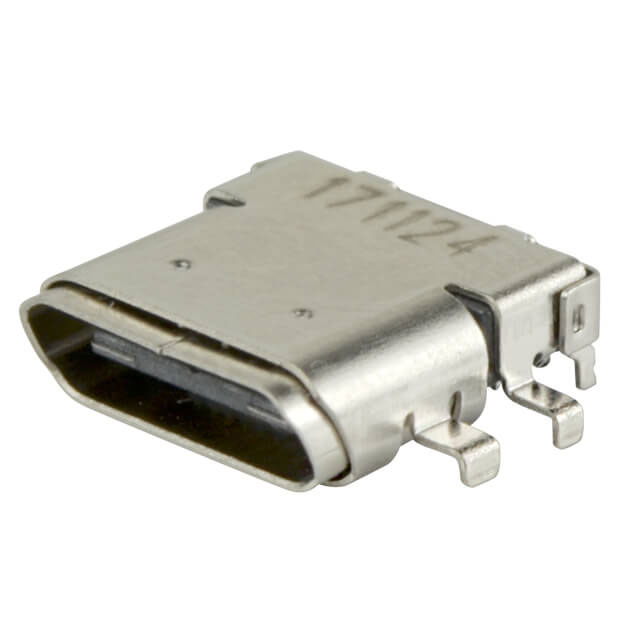

UJ31-CH-4-MSMT-TR

Obsolete

CUI Devices

CONN RCPT USB3.1 TYPEC 24POS SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

UJ31-CH-4-MSMT-TR

Obsolete

CUI Devices

CONN RCPT USB3.1 TYPEC 24POS SMD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UJ31-CH-4-MSMT-TR

Connector Type	USB-C (USB TYPE-C)
Contact Finish	Gold
Current Rating (Amps)	6.25 A, 5 A, 1.25 A, 0.25 A
Features	Board Guide, Flash Finish Thickness
Gender	Receptacle
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Board Edge, Cutout, Through Hole, Right Angle, Surface Mount
Number of Contacts	24
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Termination	Solder

UJ31-CH Series

Part	Mating Cycles	Gender	Number of Ports	Shielding	Connector Type	Specifications	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell/Shielding Material	Contact Finish	Features	Number of Contacts	Mounting Feature	Termination	Material Flammability Rating	Features	Ingress Protection	Insulation Color	Voltage - Rated
CUI Devices UJ31-CH-314-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-4-MSMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Board Edge Cutout Surface Mount Through Hole Right Angle	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide Flash Finish Thickness	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-G1-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-25 °C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-31-SMT-TR	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Surface Mount Right Angle Through Hole	-30 ░C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0
CUI Devices UJ31-CH-3-MSMT-TR-67	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A 6.25 A	Board Edge Cutout Surface Mount Through Hole Right Angle	-40 °C	80 C	Stainless Steel	Gold		24	Horizontal Mid Mount	Solder	UL94 V-0	15 µ	IP67 - Dust Tight Waterproof	Black
CUI Devices UJ31-CH-G-SMT-TR-67	10000	Receptacle	1	Shielded	USB-C (USB TYPE-C)	USB 3.2 Gen 2 (USB 3.1 Gen 2 Superspeed + (USB 3.1))	0.25 A 1.25 A 5 A	Surface Mount Right Angle Through Hole	-25 °C	85 °C	Stainless Steel	Gold	Board Guide	24	Horizontal	Solder	UL94 V-0		IP67 - Dust Tight Waterproof	Black	20 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

UJ31-CH Series

USB-C (USB TYPE-C) USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1)) Receptacle Connector 24 Position Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
