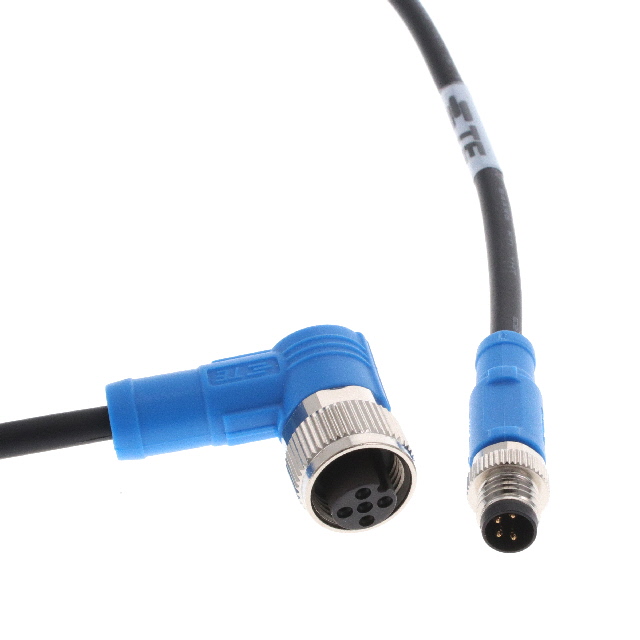

T4052118004-001
ActiveTE Connectivity Raychem Cable Protection
SENSOR/ACTUATOR M8M12 CABLE ASSEMBLY CIRCULAR
Deep-Dive with AI
Search across all available documentation for this part.
T4052118004-001
ActiveTE Connectivity Raychem Cable Protection
SENSOR/ACTUATOR M8M12 CABLE ASSEMBLY CIRCULAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4052118004-001 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 4 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | 4 positions |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug, Right Angle |
| Assembly Configuration | Standard |
| Cable Material | Polyvinyl Chloride (PVC) |
| Cable Type | Round |
| Color | Black |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Length [x] | 1.64 ft |
| Length [x] | 500 mm |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T40521 Series
M8 to M12 Cable Assembly, 4 Position, Cable Assembly Length .5 m [1.6 ft], Sensor/Actuator, A Code, M8 Plug End A, M12 Socket End B, Double Ended
