T4052117004-001

Active

TE Connectivity Raychem Cable Protection

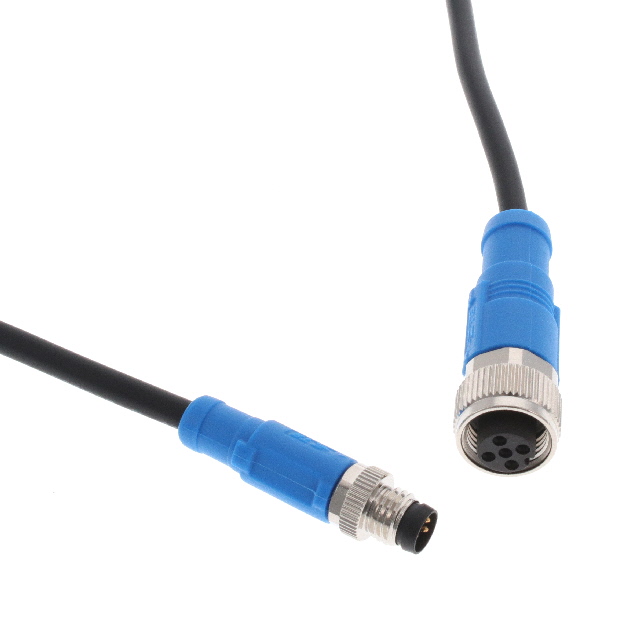

CABLE ASSEMBLY, 24AWG, 30V, COMMUNICATION CABLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

T4052117004-001

Active

TE Connectivity Raychem Cable Protection

CABLE ASSEMBLY, 24AWG, 30V, COMMUNICATION CABLE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	T4052117004-001

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	4
1st Connector Number of Positions Loaded	All
1st Connector Orientation	A
1st Connector Shell Size - Insert	M8
1st Connector Type	Receptacle
2nd Connector Gender	Female Sockets
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Connector Number of Positions	5
2nd Connector Number of Positions Loaded	4 positions
2nd Connector Shell Size - Insert	M12
2nd Connector Type	Plug
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP67 - Dust Tight, Waterproof
Length [x]	1.64 ft
Length [x]	500 mm
Shielding	Unshielded
Usage	Industrial Environments

T40521 Series

Part	1st Connector Number of Positions	2nd Connector Shell Size - Insert	2nd Connector Gender	Cable Material	1st Connector Number of Positions Loaded	Color	1st Connector Type	2nd Connector Mounting Type	Ingress Protection	Usage	1st Connector Shell Size - Insert	2nd Connector Number of Positions Loaded	1st Connector Gender	Shielding	2nd Connector Type	Assembly Configuration	1st Connector Orientation	2nd Connector Number of Positions	Cable Type	1st Connector Mounting Type	Length [x]	Length [x]
TE Connectivity Raychem Cable Protection T4052127003-005	3	M12	Female Sockets	Polyurethane (PUR)	All	Gray	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Industrial Environments	M8	3	Male Pins	Unshielded	Plug	Standard	A	5	Round	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection T4052118004-005	4	M12	Female Sockets	Polyvinyl Chloride (PVC)	All	Black	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Industrial Environments	M8	4 positions	Male Pins	Unshielded	Plug Right Angle	Standard	A	5	Round	Free Hanging (In-Line)
TE Connectivity Raychem Cable Protection T4052127003-001	3	M12	Female Sockets	Polyurethane (PUR)	All	Gray	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Industrial Environments	M8	3	Male Pins	Unshielded	Plug	Standard	A	5	Round	Free Hanging (In-Line)	1.64 ft	500 mm
TE Connectivity Raychem Cable Protection T4052117004-001	4	M12	Female Sockets	Polyvinyl Chloride (PVC)	All	Black	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Industrial Environments	M8	4 positions	Male Pins	Unshielded	Plug	Standard	A	5	Round	Free Hanging (In-Line)	1.64 ft	500 mm
TE Connectivity Raychem Cable Protection T4052118004-001	4	M12	Female Sockets	Polyvinyl Chloride (PVC)	All	Black	Receptacle	Free Hanging (In-Line)	IP67 - Dust Tight Waterproof	Industrial Environments	M8	4 positions	Male Pins	Unshielded	Plug Right Angle	Standard	A	5	Round	Free Hanging (In-Line)	1.64 ft	500 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 15.58
		10	$ 13.24
		25	$ 12.41
		50	$ 11.82
		100	$ 11.25
		250	$ 10.55
		500	$ 10.05
		1000	$ 9.57

Description

General part information

T40521 Series

Circular Cable Assembly Unshielded 1.64' (500.00mm)

Documents

Technical documentation and resources
