T4052127003-005
ActiveTE Connectivity Raychem Cable Protection

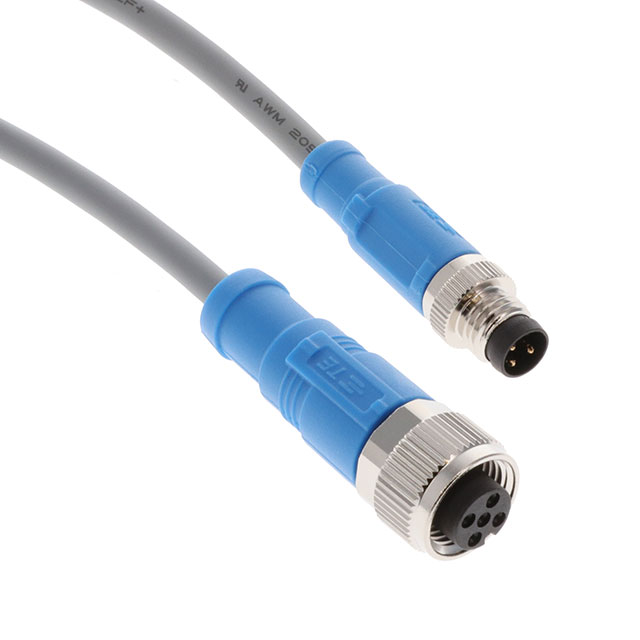

CABLE ASSEMBLY CIRCULAR SENSOR/ACTUATOR 5M 24AWG M8 CIRCULAR TO M12 CIRCULAR 3 TO 3 POS M-F BOX
Deep-Dive with AI
Search across all available documentation for this part.
T4052127003-005
ActiveTE Connectivity Raychem Cable Protection
CABLE ASSEMBLY CIRCULAR SENSOR/ACTUATOR 5M 24AWG M8 CIRCULAR TO M12 CIRCULAR 3 TO 3 POS M-F BOX
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | T4052127003-005 |
|---|---|
| 1st Connector Gender | Male Pins |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 3 |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M8 |
| 1st Connector Type | Receptacle |
| 2nd Connector Gender | Female Sockets |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Connector Number of Positions | 5 |
| 2nd Connector Number of Positions Loaded | 3 |
| 2nd Connector Shell Size - Insert | M12 |
| 2nd Connector Type | Plug |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Gray |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
T40521 Series
M8 to M12 Cable Assembly, 3 Position, Cable Assembly Length 5 m [16.4 ft], Sensor/Actuator, A Code, M8 Plug End A, M12 Socket End B, Double Ended
