10236-2200PE

Active

3M (TC)

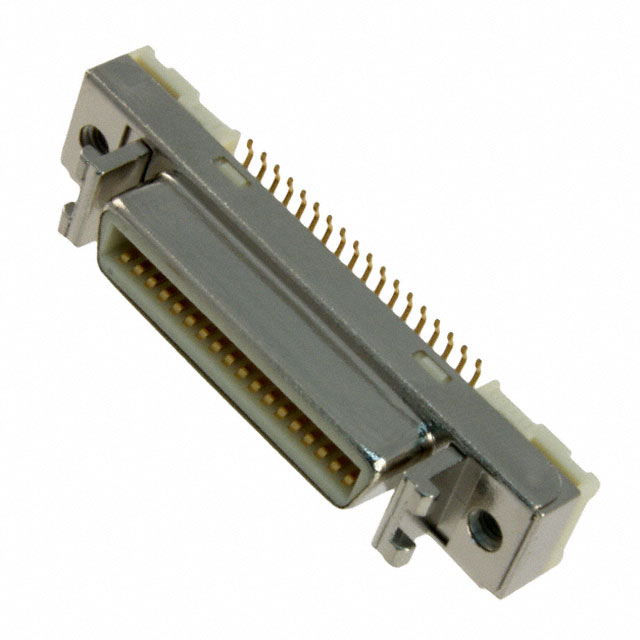

JE150343729 10236-2200PE=66/MDR/RC/SMT/RECP/VERTICAL/M2.6/20AU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MDR Selection Guide +2

10236-2200PE

Active

3M (TC)

JE150343729 10236-2200PE=66/MDR/RC/SMT/RECP/VERTICAL/M2.6/20AU

Deep-Dive with AI

DocumentsDatasheet MDR Selection Guide +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10236-2200PE

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Features	Shielded, Board Guide
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Surface Mount
Number of Positions	36
Number of Rows	2
Termination	Solder

10236 Series

Part	Number of Positions	Connector Style	Number of Rows	Contact Finish	Mounting Type	Features	Connector Type	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature
3M (TC) 10236-55F3JL	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Latchblocks	Solder	8 çin	0.203 çm
3M (TC) 10236-6212PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Solder	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-R21CS	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Press-Fit	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-2200PE	36	Outer Shroud Contacts	2	Gold	Surface Mount	Board Guide Shielded	Receptacle	Housing/Shell	Solder	20 µin	0.51 µm	2.6 M
3M (TC) 10236-0210EC	36	Outer Shroud Contacts	2	Gold	Free Hanging (In-Line)	Shielded	Receptacle	Housing/Shell	IDC	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-55H3PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell (4-40) Latchblocks	Solder	30 Áin	0.76 Ám
3M (TC) 10236-55G3PL	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell	Solder	8 çin	0.203 çm	2.6 M
3M (TC) 10236-R21TS	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Press-Fit	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-55G3PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell	Solder	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-2200VE	36	Outer Shroud Contacts	2	Gold	Surface Mount	Board Guide Shielded	Receptacle	Housing/Shell	Solder	20 µin	0.51 µm	2.6 M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 11.44
		10	$ 10.14
		25	$ 9.75
		50	$ 9.36
		100	$ 9.16
Newark	Each	100	$ 14.58
		250	$ 13.55
		500	$ 12.66

Description

General part information

10236 Series

36 Position Receptacle Connector Surface Mount Solder

Documents

Technical documentation and resources

Datasheet

MDR Selection Guide

Interconnect Catalog

Datasheet

MDR Series Qualification Report

Datasheet
