10236-55H3PC

Active

3M (TC)

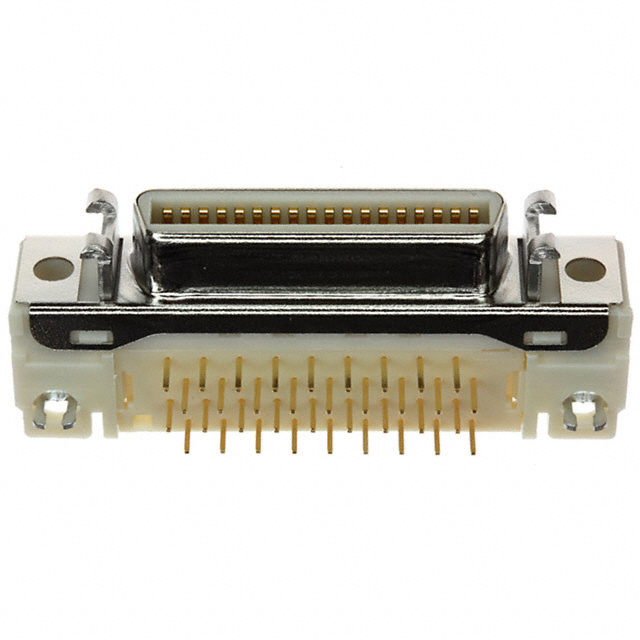

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 36 CONTACTS, SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsMDR Selection Guide Interconnect Catalog +3

10236-55H3PC

Active

3M (TC)

D SUB CONNECTOR, MINI D (RIBBON CONNECTOR), RECEPTACLE, 102 SERIES, 36 CONTACTS, SOLDER

Deep-Dive with AI

DocumentsMDR Selection Guide Interconnect Catalog +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10236-55H3PC

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Shielded, Board Lock
Flange Feature	Housing/Shell (4-40), Latchblocks
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	36
Number of Rows	2
Termination	Solder

10236 Series

Part	Number of Positions	Connector Style	Number of Rows	Contact Finish	Mounting Type	Features	Connector Type	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness	Flange Feature
3M (TC) 10236-55F3JL	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Latchblocks	Solder	8 çin	0.203 çm
3M (TC) 10236-6212PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Solder	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-R21CS	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Press-Fit	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-2200PE	36	Outer Shroud Contacts	2	Gold	Surface Mount	Board Guide Shielded	Receptacle	Housing/Shell	Solder	20 µin	0.51 µm	2.6 M
3M (TC) 10236-0210EC	36	Outer Shroud Contacts	2	Gold	Free Hanging (In-Line)	Shielded	Receptacle	Housing/Shell	IDC	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-55H3PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell (4-40) Latchblocks	Solder	30 Áin	0.76 Ám
3M (TC) 10236-55G3PL	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell	Solder	8 çin	0.203 çm	2.6 M
3M (TC) 10236-R21TS	36	Outer Shroud Contacts	2	Gold	Panel Mount Through Hole	Shielded	Receptacle	Housing/Shell	Press-Fit	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-55G3PC	36	Outer Shroud Contacts	2	Gold	Panel Mount Right Angle Through Hole	Board Lock Shielded	Receptacle	Housing/Shell	Solder	30 Áin	0.76 Ám	2.6 M
3M (TC) 10236-2200VE	36	Outer Shroud Contacts	2	Gold	Surface Mount	Board Guide Shielded	Receptacle	Housing/Shell	Solder	20 µin	0.51 µm	2.6 M

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.58
		10	$ 6.58
		25	$ 5.94
		50	$ 5.51
		100	$ 5.11
		250	$ 4.65
		500	$ 4.34
		1000	$ 4.05
		2500	$ 3.77
Newark	Each	100	$ 5.91
		250	$ 5.21
		500	$ 5.06
		1000	$ 4.30

Description

General part information

10236 Series

36 Position Receptacle Connector Panel Mount, Through Hole, Right Angle Solder
