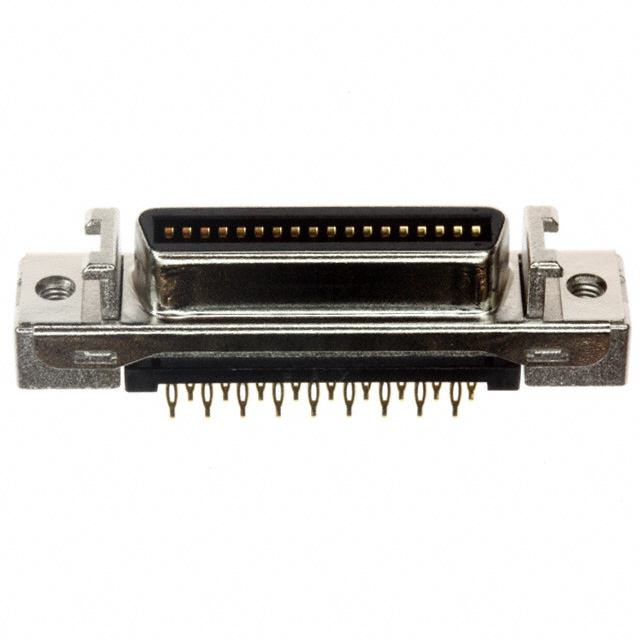

10236-R21TS
Active3M (TC)
CONN RCPT 36POS PCB PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
10236-R21TS
Active3M (TC)
CONN RCPT 36POS PCB PRESS-FIT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 10236-R21TS |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.76 Ám |
| Contact Finish Thickness | 30 Áin |
| Features | Shielded |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 36 |
| Number of Rows | 2 |
| Termination | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 14.43 | |
| 10 | $ 12.79 | |||
| 25 | $ 12.30 | |||
| 40 | $ 11.81 | |||
| 50 | $ 10.21 | |||
| 100 | $ 11.15 | |||
| 300 | $ 10.17 | |||
| 500 | $ 9.51 | |||
| 1000 | $ 8.73 | |||
Description
General part information
10236 Series
36 Position Receptacle Connector Panel Mount, Through Hole Press-Fit
