TMB-V5F2-3LC
ActiveCarlisleIT

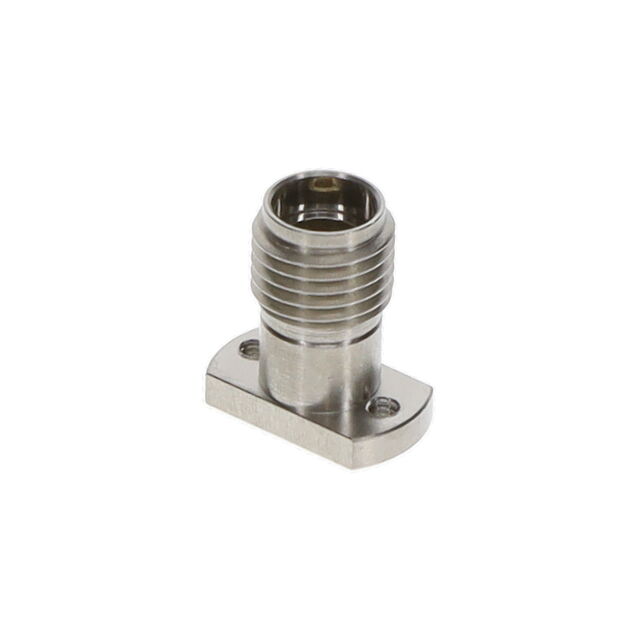

3.50MM FEMALE 2 HOLE FLANGE POST
Deep-Dive with AI
Search across all available documentation for this part.
TMB-V5F2-3LC
ActiveCarlisleIT
3.50MM FEMALE 2 HOLE FLANGE POST
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMB-V5F2-3LC |
|---|---|
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Gold |
| Connector Style | 3.5 mm |
| Connector Type | Female Socket, Jack |
| Contact Termination | Compression |
| Frequency - Max [Max] | 34 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Insertion Loss | 0.35 dB |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Surface Mount |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Screw |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 21.08 | |
| 10 | $ 18.27 | |||
| 25 | $ 17.32 | |||
| 40 | $ 17.07 | |||
| 100 | $ 15.06 | |||
| 300 | $ 14.06 | |||
| 500 | $ 13.75 | |||
Description
General part information
TMB-V5 Series
3.5mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
