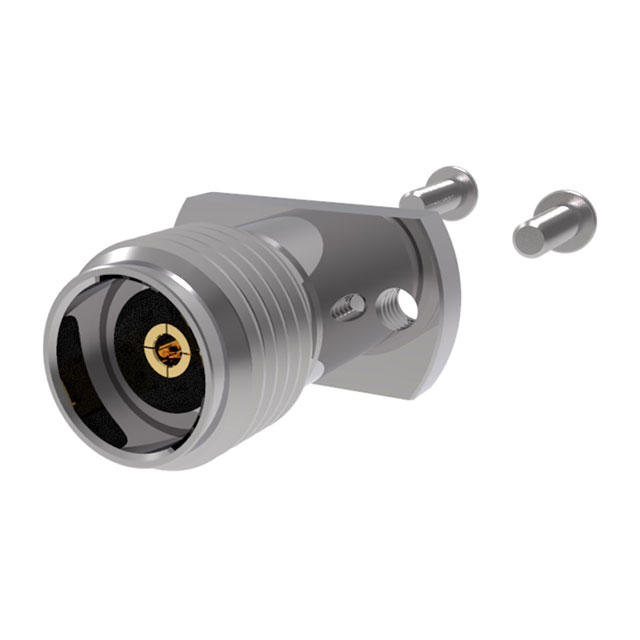

TMB-V5F2-3L1

Active

CarlisleIT

3.5(F)2-H,VL,FIELDREP

Search across all available documentation for this part.

Active

CarlisleIT

3.5(F)2-H,VL,FIELDREP

Technical Specifications

Parameters and characteristics for this part

Specification	TMB-V5F2-3L1

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	3.5 mm
Connector Type	Female Socket, Jack
Contact Termination	Compression
Features	Field Replaceable, For Hermetically Sealed Pin
Frequency - Max [Max]	34 GHz
Housing Color	Silver
Impedance	50 Ohms
Insertion Loss	0.35 dB
Mating Cycles	500
Mounting Feature	Flange
Mounting Type	Surface Mount
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Screw
Voltage Rating	500 V

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Features	Mounting Feature	Voltage Rating	Center Contact Plating	Impedance	Connector Style	Mounting Type	Connector Type	Housing Color	Number of Ports	Frequency - Max [Max]	Body Material	Contact Termination	Shield Termination	Insertion Loss	Body Finish
CarlisleIT TMB-V5F2-3L1	500	-65 ░C	165 °C	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	Flange	500 V	Gold	50 Ohms	3.5 mm	Surface Mount	Female Socket Jack	Silver	1	34 GHz	Stainless Steel	Compression	Screw	0.35 dB
CarlisleIT TMB-V5F2-3LC	500	-65 ░C	165 °C	Beryllium Copper		Flange	500 V	Gold	50 Ohms	3.5 mm	Surface Mount	Female Socket Jack	Silver	1	34 GHz	Stainless Steel	Compression	Screw	0.35 dB
CarlisleIT TMB-V5FS-3SM	500	-65 ░C	165 °C	Beryllium Copper			400 V	Gold	50 Ohms	3.5 mm	Through Hole	Female Socket Jack	Gold	1	34 GHz	Brass	Solder	Solder	0.6 dB	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5mm Connector Jack, Female Socket 50 Ohms Surface Mount Compression
