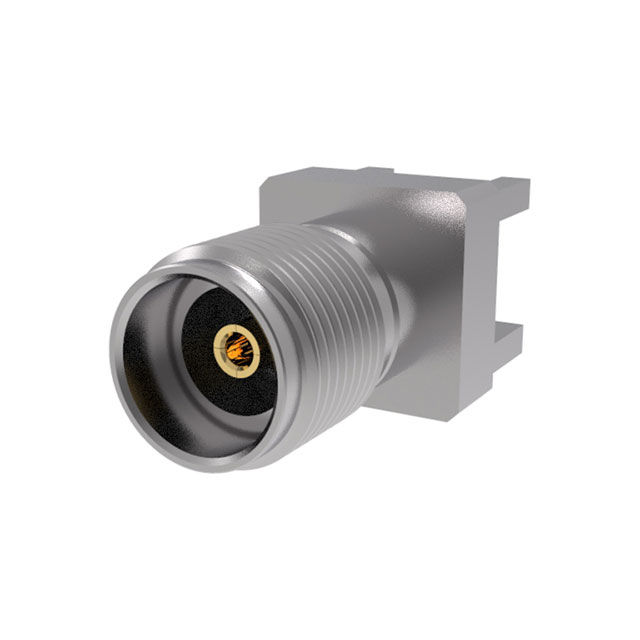

TMB-V5FS-3SM

Active

CarlisleIT

3.5(F)STR,VL,MIXED-TECH,SOLDER

Search across all available documentation for this part.

Active

CarlisleIT

3.5(F)STR,VL,MIXED-TECH,SOLDER

Technical Specifications

Parameters and characteristics for this part

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Center Contact Material	Features	Mounting Feature	Voltage Rating	Center Contact Plating	Impedance	Connector Style	Mounting Type	Connector Type	Housing Color	Number of Ports	Frequency - Max [Max]	Body Material	Contact Termination	Shield Termination	Insertion Loss	Body Finish
CarlisleIT TMB-V5F2-3L1	500	-65 ░C	165 °C	Beryllium Copper	Field Replaceable For Hermetically Sealed Pin	Flange	500 V	Gold	50 Ohms	3.5 mm	Surface Mount	Female Socket Jack	Silver	1	34 GHz	Stainless Steel	Compression	Screw	0.35 dB
CarlisleIT TMB-V5F2-3LC	500	-65 ░C	165 °C	Beryllium Copper		Flange	500 V	Gold	50 Ohms	3.5 mm	Surface Mount	Female Socket Jack	Silver	1	34 GHz	Stainless Steel	Compression	Screw	0.35 dB
CarlisleIT TMB-V5FS-3SM	500	-65 ░C	165 °C	Beryllium Copper			400 V	Gold	50 Ohms	3.5 mm	Through Hole	Female Socket Jack	Gold	1	34 GHz	Brass	Solder	Solder	0.6 dB	Gold

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3.5mm Connector Jack, Female Socket 50 Ohms Through Hole Solder
