09200100540

Active

HARTING Technology Group

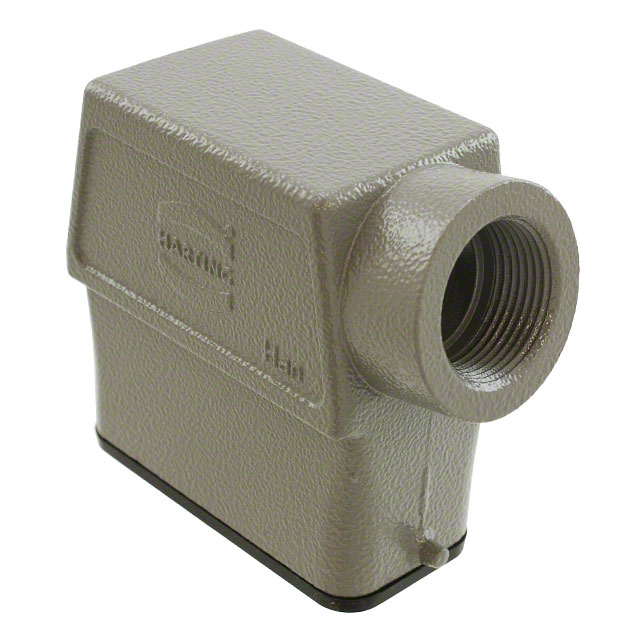

HEAVY DUTY CONNECTOR, PG16 SIDE ENTRY, 2 PEGS, HIGH PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09200100540

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG16 SIDE ENTRY, 2 PEGS, HIGH PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200100540

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	2.469 "
Size / Dimension [x]	62.7 mm
Size / Dimension [y]	1.417 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	2.646 "
Size / Dimension [z]	67.2 mm
Style	Side Entry
Thread Size	PG16

09200100 Series

Part	Thread Size	Size	Connector Type	Style	Ingress Protection	Features	Lock Location	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
HARTING Technology Group 09200100221	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Cover	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100440	PG16	10 A	Hood	Top Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100730	PG16	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100321		10 A	Base - Panel Mount	Bottom Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.161 "	81 mm	29.5 mm	26 mm	1.024 in	3.189 in
HARTING Technology Group 09200100251	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in 50 mm				2.047 in 52 mm	2.929 in 74.4 mm
HARTING Technology Group 09200100252	PG21	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100731	PG21	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100680	PG13.5	10 A	Hood	Front Entry Dual			Locking Clip (1) on Base Bottom						1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100291	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Feed Through	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	87.9 mm	50 mm	52 mm	2.047 in	3.461 in
HARTING Technology Group 09200100540	PG16	10 A	Hood	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
