09200100221

Active

HARTING Technology Group

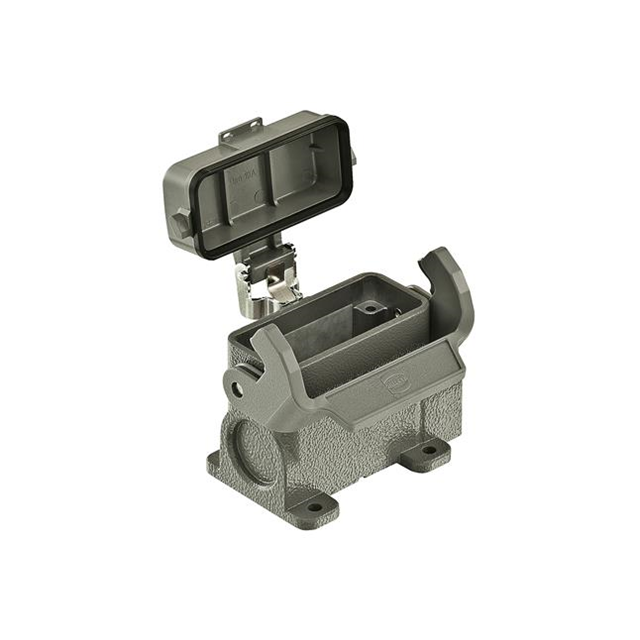

HEAVY DUTY CONNECTOR, PG16, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09200100221

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG16, BASE, PANEL MOUNT, ALUMINUM BODY, 1 LEVER, 10A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200100221

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	63.5 mm
Size / Dimension [x]	63.5 mm
Size / Dimension [y]	1.969 in
Size / Dimension [y]	50 mm
Size / Dimension [z]	52 mm
Size / Dimension [z]	2.047 in
Style	Side Entry
Thread Size	PG16

09200100 Series

Part	Thread Size	Size	Connector Type	Style	Ingress Protection	Features	Lock Location	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
HARTING Technology Group 09200100221	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Cover	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100440	PG16	10 A	Hood	Top Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100730	PG16	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100321		10 A	Base - Panel Mount	Bottom Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.161 "	81 mm	29.5 mm	26 mm	1.024 in	3.189 in
HARTING Technology Group 09200100251	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in 50 mm				2.047 in 52 mm	2.929 in 74.4 mm
HARTING Technology Group 09200100252	PG21	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100731	PG21	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100680	PG13.5	10 A	Hood	Front Entry Dual			Locking Clip (1) on Base Bottom						1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100291	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Feed Through	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	87.9 mm	50 mm	52 mm	2.047 in	3.461 in
HARTING Technology Group 09200100540	PG16	10 A	Hood	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.64
		10	$ 57.48
		25	$ 55.27
		50	$ 53.42
		100	$ 50.48
Newark	Each	1	$ 88.78
		5	$ 82.37
		10	$ 76.83
		25	$ 71.98
		50	$ 67.71

Description

General part information

09200100 Series

Base - Box Mount Connector Side Entry PG16 10A IP65 - Dust Tight, Water Resistant
