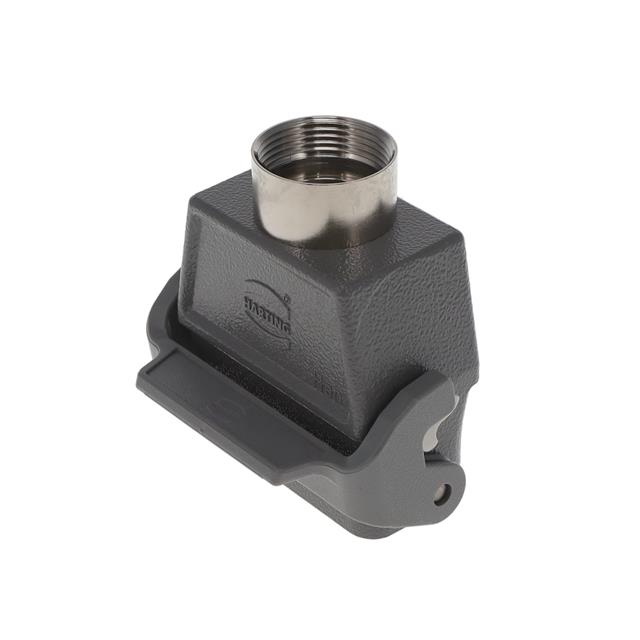

HOOD 180° 10A SHELL SIZE POWDER DIE CAST ALUMINUM HAN®

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

09200100731

Active

HARTING Technology Group

HOOD 180° 10A SHELL SIZE POWDER DIE CAST ALUMINUM HAN®

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09200100731

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood Top
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	10 A
Size / Dimension [x]	2.469 "
Size / Dimension [x]	62.7 mm
Size / Dimension [y]	1.417 in
Size / Dimension [y]	36 mm
Size / Dimension [z]	2.441 "
Size / Dimension [z]	62 mm
Style	Bottom Entry
Thread Size	PG21

09200100 Series

Part	Thread Size	Size	Connector Type	Style	Ingress Protection	Features	Lock Location	Housing Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Housing Finish	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]
HARTING Technology Group 09200100221	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Cover	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100440	PG16	10 A	Hood	Top Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100730	PG16	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100321		10 A	Base - Panel Mount	Bottom Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.161 "	81 mm	29.5 mm	26 mm	1.024 in	3.189 in
HARTING Technology Group 09200100251	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in 50 mm				2.047 in 52 mm	2.929 in 74.4 mm
HARTING Technology Group 09200100252	PG21	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	63.5 mm	50 mm	52 mm	2.047 in	63.5 mm
HARTING Technology Group 09200100731	PG21	10 A	Hood - Coupling	Bottom Entry	IP65 - Dust Tight Water Resistant	Cable to Cable	Locking Clip (1) on Hood Top	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	62 mm	2.441 "	2.469 "
HARTING Technology Group 09200100680	PG13.5	10 A	Hood	Front Entry Dual			Locking Clip (1) on Base Bottom						1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
HARTING Technology Group 09200100291	PG16	10 A	Base - Box Mount	Side Entry	IP65 - Dust Tight Water Resistant	Feed Through	Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.969 in	87.9 mm	50 mm	52 mm	2.047 in	3.461 in
HARTING Technology Group 09200100540	PG16	10 A	Hood	Side Entry	IP65 - Dust Tight Water Resistant		Locking Clip (1) on Base Bottom	Aluminum Die Cast	Gray	125 °C	-40 °C	Powder Coated	1.417 in	62.7 mm	36 mm	67.2 mm	2.646 "	2.469 "
