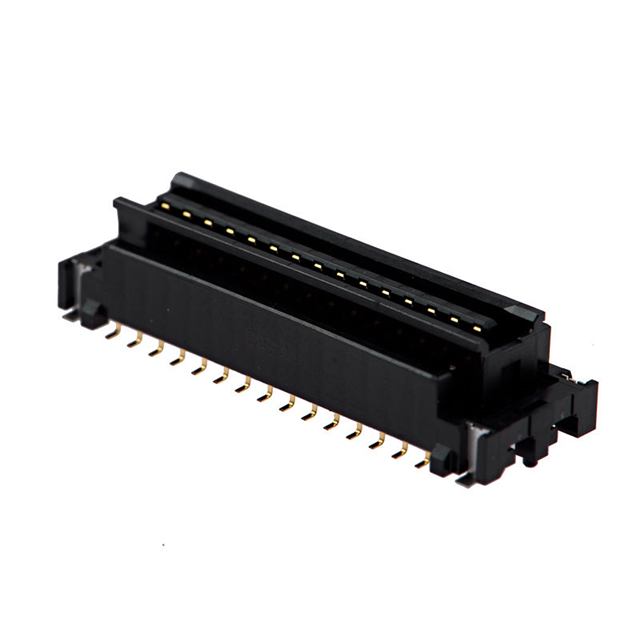

IMSA-10120B-30Y913
ActiveIRISO USA Inc.
CONN HEADER VERT B-TO-B FLOATING
Deep-Dive with AI
Search across all available documentation for this part.
IMSA-10120B-30Y913
ActiveIRISO USA Inc.
CONN HEADER VERT B-TO-B FLOATING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-10120B-30Y913 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board | 8.95 mm |
| Height Above Board | 0.352 in |
| Mounting Type | Surface Mount |
| Number of Positions | 30 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.42 | |
| 10 | $ 4.60 | |||
| 25 | $ 4.32 | |||
| 50 | $ 4.11 | |||
| 100 | $ 3.91 | |||
| Tape & Reel (TR) | 250 | $ 3.67 | ||
| 500 | $ 3.49 | |||
| 750 | $ 3.39 | |||
| 1250 | $ 3.27 | |||
| 1750 | $ 3.20 | |||
| 2500 | $ 3.12 | |||
Description
General part information
IMSA-1012 Series
30 Position Connector Plug, Center Strip Contacts Surface Mount Gold
