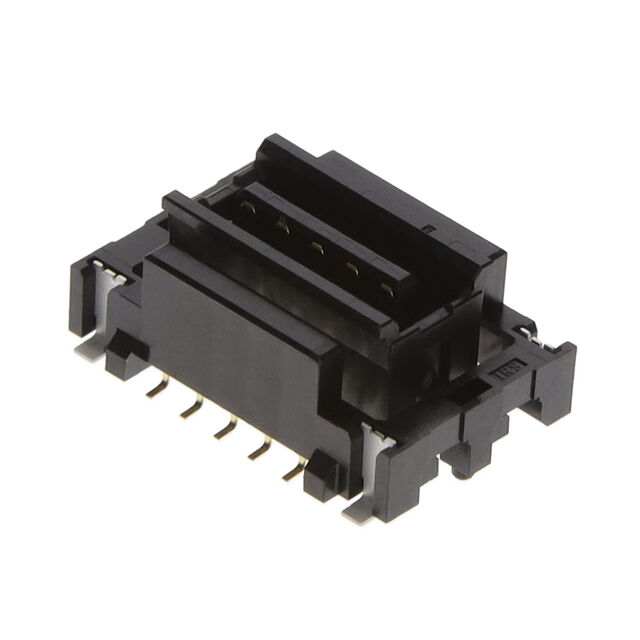

IMSA-10120B-10Z02-GFN4
ActiveIRISO USA Inc.
CONN HEADER VERT B-TO-B FLOATING
Deep-Dive with AI
Search across all available documentation for this part.
IMSA-10120B-10Z02-GFN4
ActiveIRISO USA Inc.
CONN HEADER VERT B-TO-B FLOATING
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IMSA-10120B-10Z02-GFN4 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention, Board Guide |
| Height Above Board [z] | 7.95 mm |
| Height Above Board [z] | 0.313 in |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Rows | 2 |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
IMSA-1012 Series
| Part | Mounting Type | Number of Rows | Height Above Board | Height Above Board | Features | Connector Type | Pitch [x] | Pitch [x] | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
IRISO USA Inc. | Surface Mount | 2 | 0.329 in | 8.35 mm | Board Guide Solder Retention | Socket Center Strip Contacts | 0.079 in | 2 mm | 6 | |||||
IRISO USA Inc. | Surface Mount | 2 | 0.352 in | 8.95 mm | Board Guide Solder Retention | 0.079 in | 2 mm | 30 | Gold | 4 Áin | 0.1 Ám | |||
IRISO USA Inc. | Surface Mount | 2 | Solder Retention | 0.016 in | 0.4 mm | 30 | Gold | |||||||
IRISO USA Inc. | Surface Mount | 2 | 0.352 in | 8.95 mm | Board Guide Solder Retention | 0.079 in | 2 mm | 6 | Gold | 4 Áin | 0.1 Ám | |||
IRISO USA Inc. | Surface Mount | 2 | 0.352 in | 8.95 mm | Board Guide Solder Retention | 0.079 in | 2 mm | 20 | Gold | 4 Áin | 0.1 Ám | |||
IRISO USA Inc. | Surface Mount | 2 | 0.644 in | 16.35 mm | Board Guide Solder Retention | Socket Center Strip Contacts | 0.079 in | 2 mm | 6 | Gold | 4 Áin | 0.1 Ám | ||
IRISO USA Inc. | Surface Mount | 2 | Board Guide Solder Retention | 0.079 in | 2 mm | 10 | Gold | 4 Áin | 0.1 Ám | 7.95 mm | 0.313 in | |||
IRISO USA Inc. | Surface Mount | 2 | 0.352 in | 8.95 mm | Board Guide Solder Retention | 0.079 in | 2 mm | 30 | Gold | 4 Áin | 0.1 Ám | |||
IRISO USA Inc. | Surface Mount | 2 | 0.352 in | 8.95 mm | Board Guide Solder Retention | 0.079 in | 2 mm | 6 | Gold | 4 Áin | 0.1 Ám | |||
IRISO USA Inc. | Surface Mount | 2 | Board Guide Solder Retention | Socket Center Strip Contacts | 0.079 in | 2 mm | 30 | Gold | 4 Áin | 0.1 Ám | 12.35 mm | 0.486 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 3.54 | |
| 10 | $ 3.21 | |||
| 25 | $ 3.04 | |||
| 50 | $ 2.97 | |||
| 100 | $ 2.83 | |||
| Tape & Reel (TR) | 250 | $ 1.75 | ||
Description
General part information
IMSA-1012 Series
10 Position Connector Plug, Center Strip Contacts Surface Mount Gold
